One single connecting rod is where it all began for Hot Rods and now, with almost two decades of experience, continuously improved designs and an ever-expanding line of applications, Hot Rods has continued to be, not only “The Original” aftermarket replacement rod, but the best aftermarket replacement rod.
All of Hot Rods replacement rods are created from 8620 case hardened steel. But, in addition to that, they also undergo a special forging process which helps to improve grain flow as well as dimensional consistency — and that means a rod of uncompromising strength.
To improve fatigue durability, all Hot Rods rods are shot-peened. This process, utilising a stainless steel shot, helps to remove stress risers and creates smoothly blended radiuses. In the end, Hot Rods connecting rod is one of the most durable rods that enthusiasts and engine builders can buy.
However, a rod is only as good as its supporting parts and that’s why a Hot Rods kit features only the most advanced and durable bearings. Case hardened and silver coated, the bearings are just as tough and reliable as the rods. Hot Rods crankpins are subjected to the same rigorous standards as the rods and bearings. Each crankpin is created from hot-rolled ASTM 4115 steel and case-hardened to a level of 58–62 Rc.
FEATURES
- Double-honed bearing surfaces to provide a reliable, high RPM rod
- Double-drilled small ends for increased wrist pin lubrication
- Bronze bushings in the small end of all four-stroke rods to maximise durability under high-loads and prevent galling
- Specially designed vent slots in the large end of all two-stroke rods for improved lubrication
- Side scalloping on large end to minimise high RPM rod distortion
SPECIFICATIONS
-
Connecting Rod Big End I.D. 42mm
-
Connecting Rod Big End Width:
19.950mm
-
Connecting Rod Centre-to-Centre: 103.500mm
-
Connecting Rod Small End I.D. 18mm
-
Connecting Rod Small End Width: 18mm
-
Engine Type: 4-Cycle
-

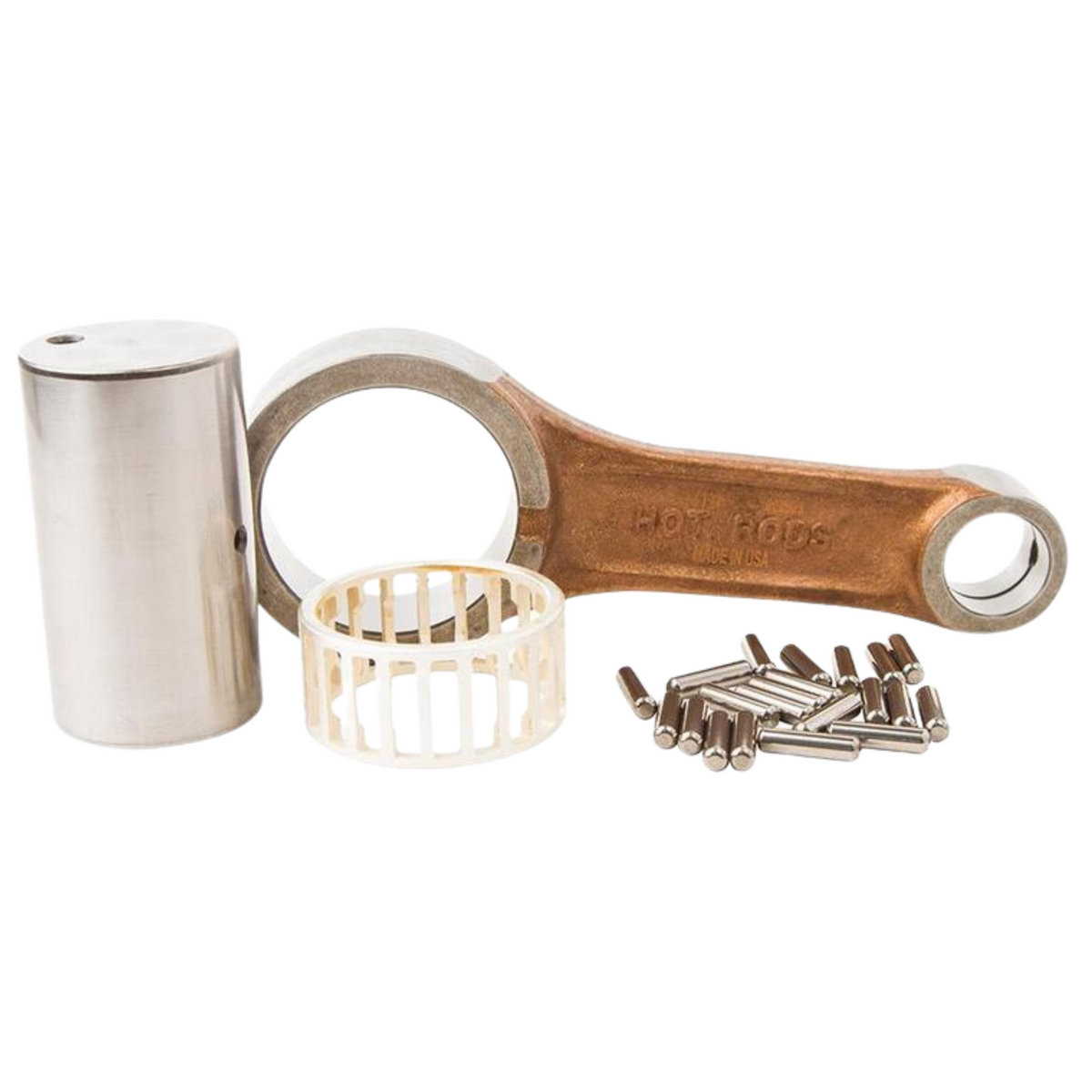

Includes: Connecting Rod, Crank Pin and Crank Pin Bearing
-
Pin Length: 60.800mm
BIKE FITMENT:
YAMAHA
- WR450F 2004-2006
- YZ450F 2003-2005
