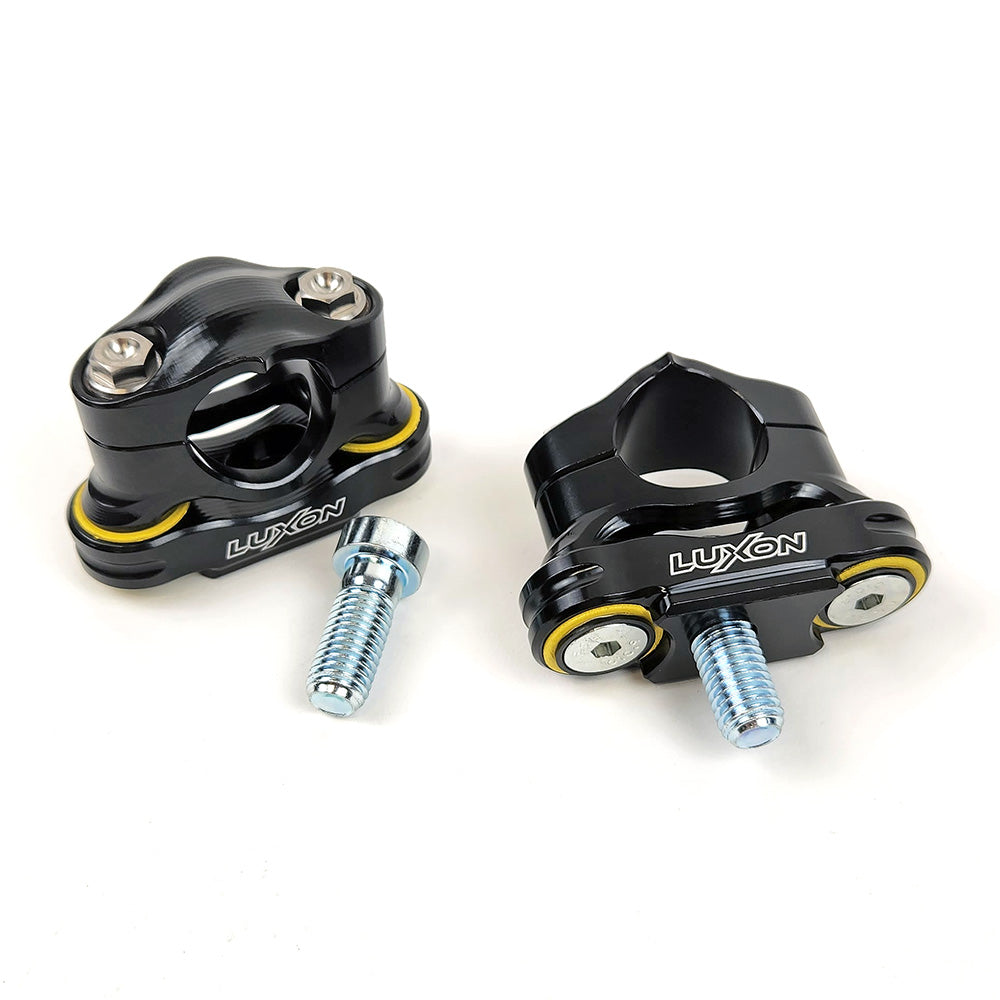

LUXON 4-POST RUBBER ISOLATED 1 1/8" BAR MOUNTS (FOR LUXON GEN3 TRIPLE CLAMPS & XTRIG CLAMPS)

Luxon lightweight 4-post bar mounts eliminate twisting due to small crashes and tip-overs without sacrificing vibration absorption like a solid mount would. Four sets of bushings absorb hard hits and track roughness without compromising steering precision. Three different rubber bushing sets (soft, medium, and firm) are included to fine tune the feel.

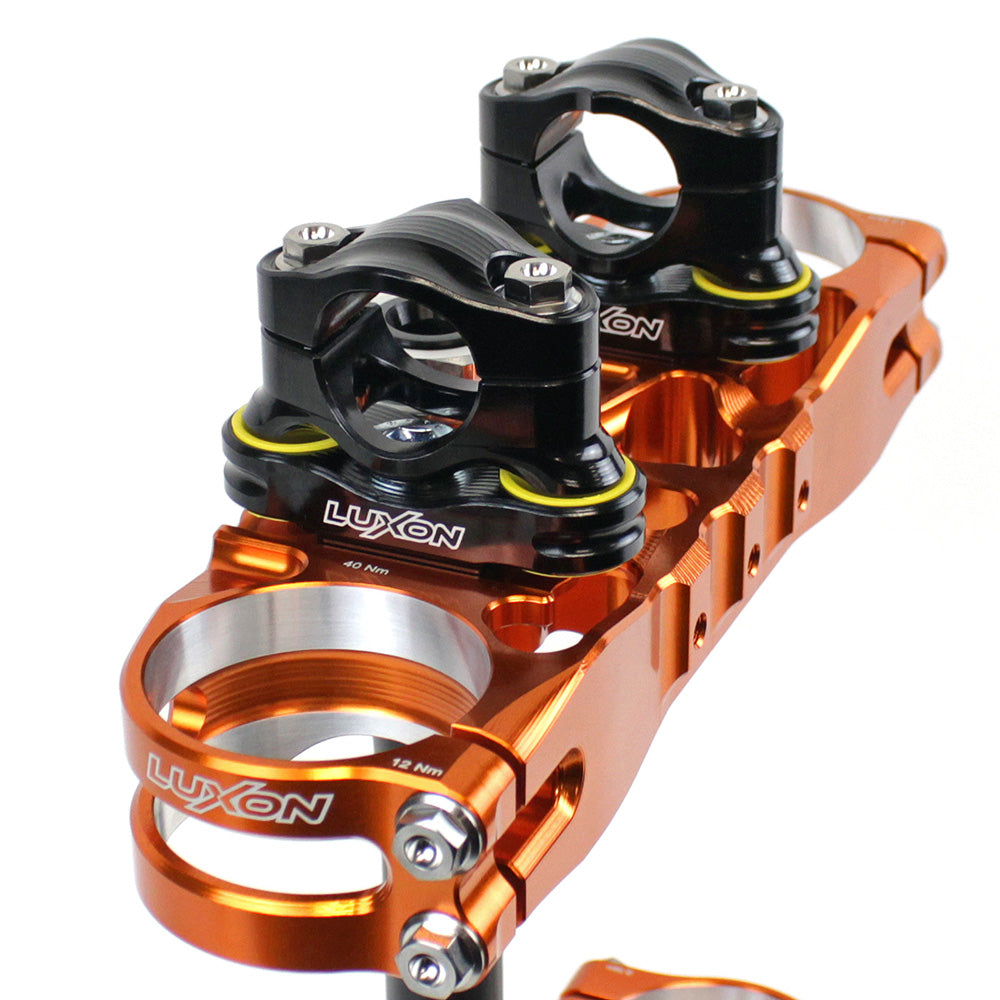

These mounts fit Luxon Gen3 and Gen3 Pro triple clamps as well as many Xtrig triple clamps with an M12 interface. These DO NOT fit stock clamps or other aftermarket clamps.

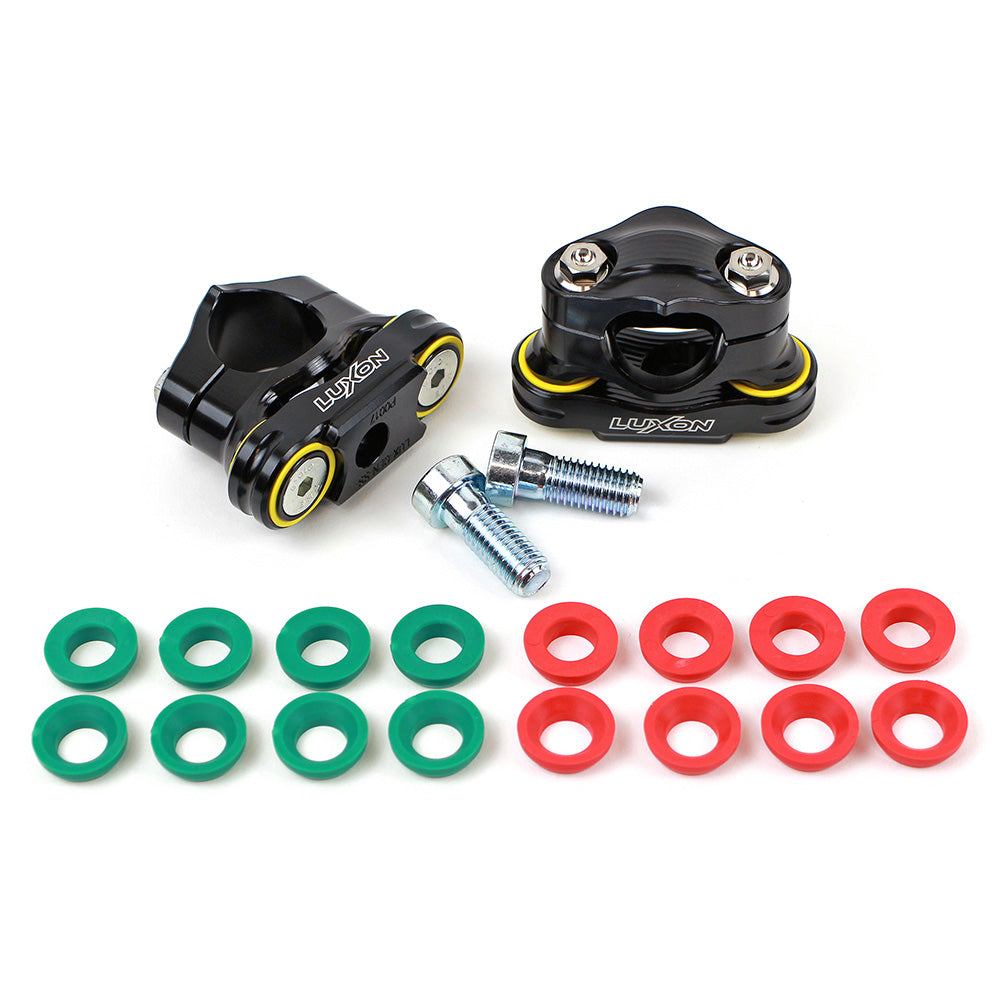

Kit Includes:

• Rubber isolated lower bar mounts
• Rubber bushings
• Upper bar clamps
• High-strength steel mount and clamp bolts (Titanium clamp bolts are an optional upgrade)
• Anti-seize
• Instruction manual.

These mounts have a height of 21mm (bottom of bar to top of triple clamp) and a 3.75mm offset (7.5mm of bar position change when flipping the mounts around). An optional spacer kit is available (allows 21mm, 26mm, 31mm, and 36mm heights).

Three different hardness levels of rubber bushings are included at no additional cost. Soft (green) is for lighter riders, vet riders, or those with wrist injuries. Medium (yellow) is recommended for most off-road and motocross use, and hard (red) is recommended for aggressive motocross use and faster riders. It is also possible to mix different hardness levels of top and bottom bushings (for example, medium uppers with hard lowers) for further tuning.

Bushings will "break in" on the first ride and become a little softer than when first installed. Like all rubber bushings, these are wear items and will eventually break down and need replacing. Softer bushings will need to be replaced more often than harder bushings. Replacement bushings are available here.

FITMENT:

These mounts fit Luxon Gen3, Gen3 Pro, and many Xtrig triple clamps. They do NOT fit stock clamps or other aftermarket clamps. Luxon mounts fit most bikes without issue. In some cases, you may need to trim plastic brackets or relocate hour meters or accessories to allow clearance in the extreme mounting positions (for example: front hole, bars away from the rider). Always check for full clearance after installation and before riding.

BAR SIZE:

Luxon 1 1/8" bar mounts fit standard 1 1/8" (28.6mm) handlebars (sometimes called fatbars) and Luxon 36mm mounts fit the Renthal FB36 bars (36mm). These are NOT the same as fatbars, they have a much larger clamping diameter. Luxon do not offer bar mounts to fit the old 7/8" size handlebars. Other aftermarket companies offer adapter bushings to fit the 7/8" bar diameter in standard 1 1/8" mounts if necessary.

If you require 36mm bar mounts - click here.

BAR CLAMP BOLTS - available in two options:

• High Strength Steel
• Grade 5 Titanium

WEIGHT (1 1/8") 367 g, 0.81 lbs
WEIGHT (1 1/8") 347 g, 0.76 lbs (with ti bolts)
WEIGHT (36 MM) 399 g, 0.88 lbs
WEIGHT (36 MM) 379 g, 0.84 lbs (with ti bolts)
XTRIG PHDS WEIGHT (1 1/8") 506 g, 1.12 lbs

VIEW INSTALLATION INSTRUCTIONS HERE
