Luxon MX is an offshoot of Luxon Engineering, a San Diego based product development and mechanical engineering company. Luxon MX was formed to apply their vast engineering experience and technology to their motocross passion. Motocross is rather young in terms of engineering technology and Luxon is out to challenge the status quo offering advanced performance products.
Unlike other aftermarket motocross companies, Luxon are an engineering focused company. Their goal is to provide the most advanced products available: light weight and high strength parts with ideal stiffness/flex characteristics. They leverage advanced engineering technology in the design of their products; to a level unmatched in the motocross industry.

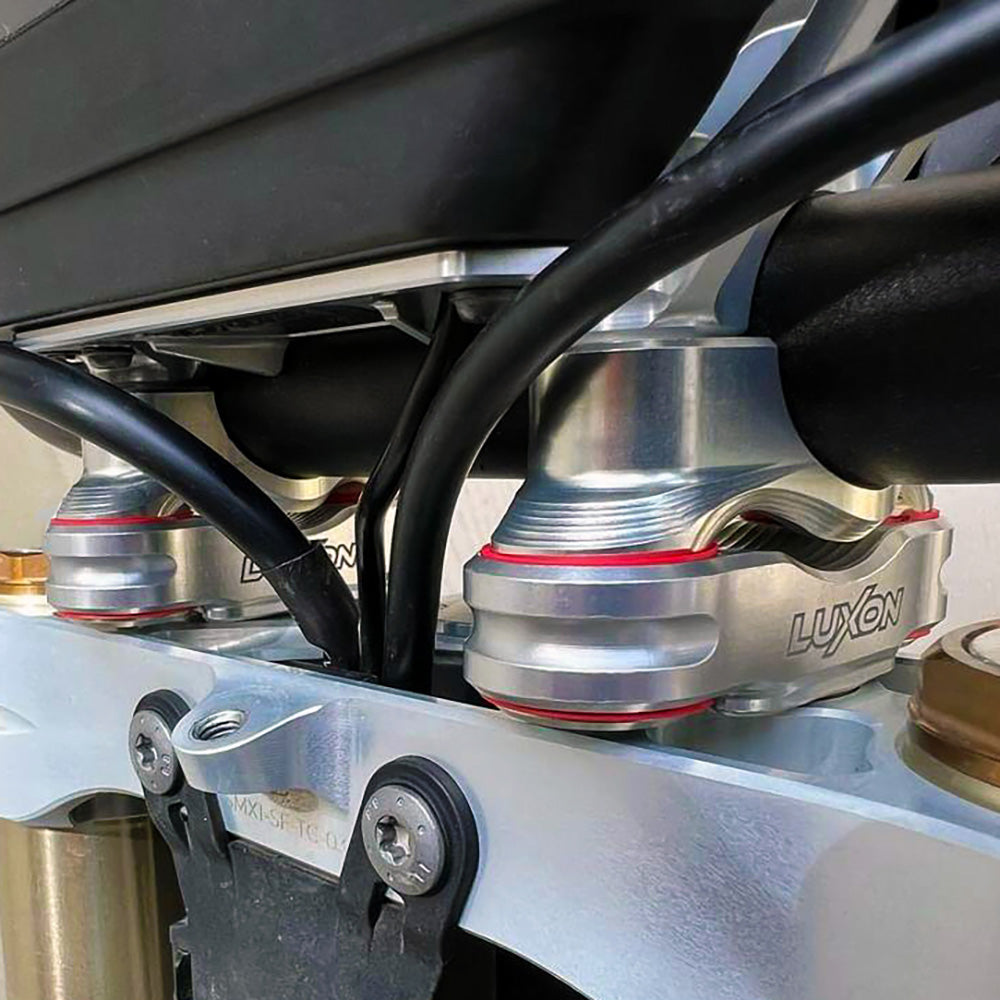

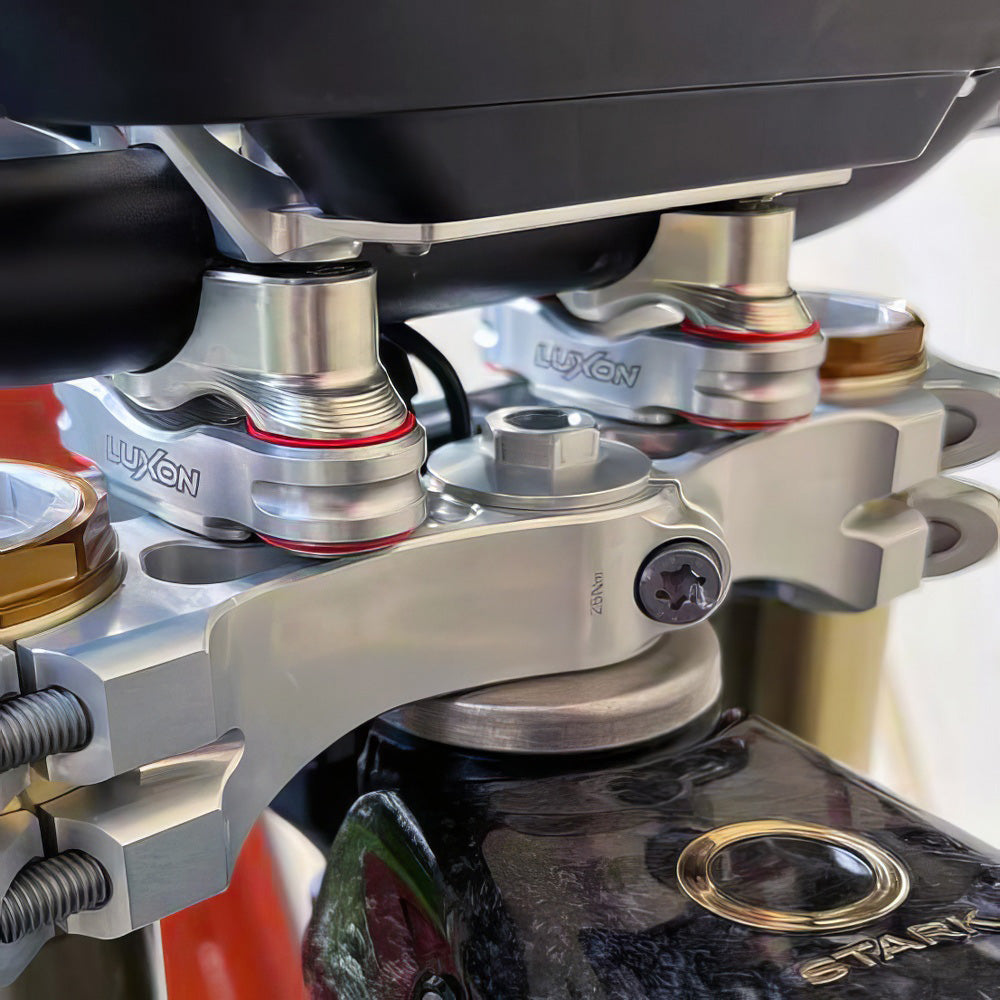

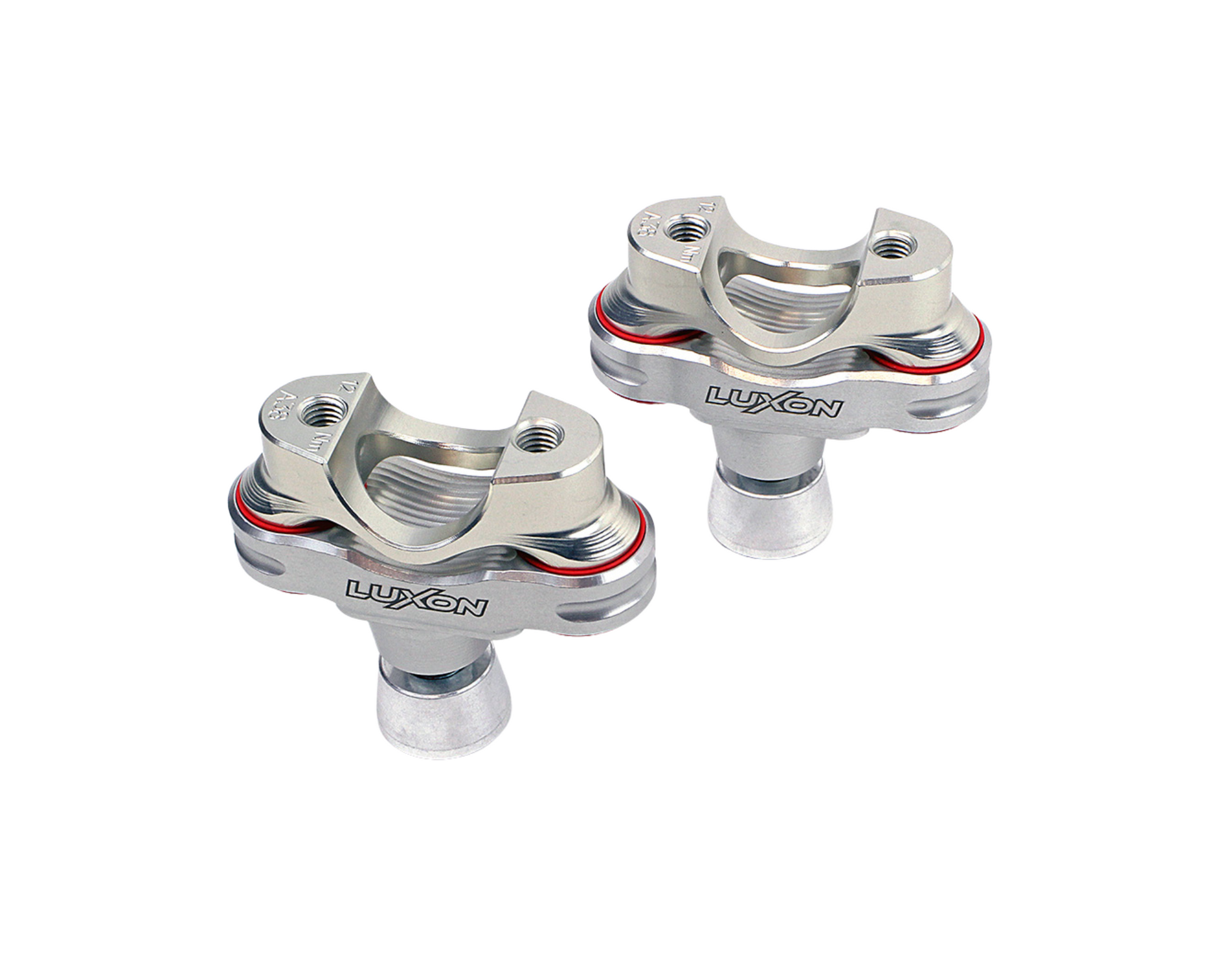

Luxon's 4-post style bar mount is rubber isolated and designed to reduce vibration felt from the engine, eliminate twisting in small crashes and tip-overs, and absorb hard hits and track roughness without compromising steering precision. Three different rubber bushing hardness levels are included to fine tune the feel. Luxon mounts are lighter than stock, yet resist twisting up in crashes with the 4-post design.
These mounts fit the stock Stark Varg triple clamps and are intended to use the stock phone mount (top bar clamp) and pinch bolts. These mounts have the same bar position geometry as the stock Stark Varg. The mounts are the stock height of 25 mm (bottom of bar to top of triple clamp) and stock offset (7 mm of bar position change when flipping the mounts around).

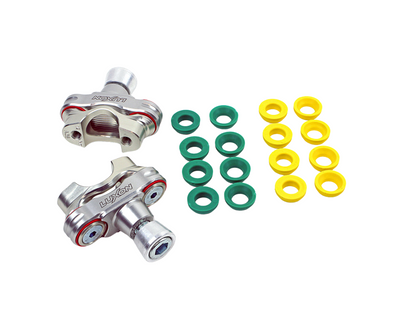

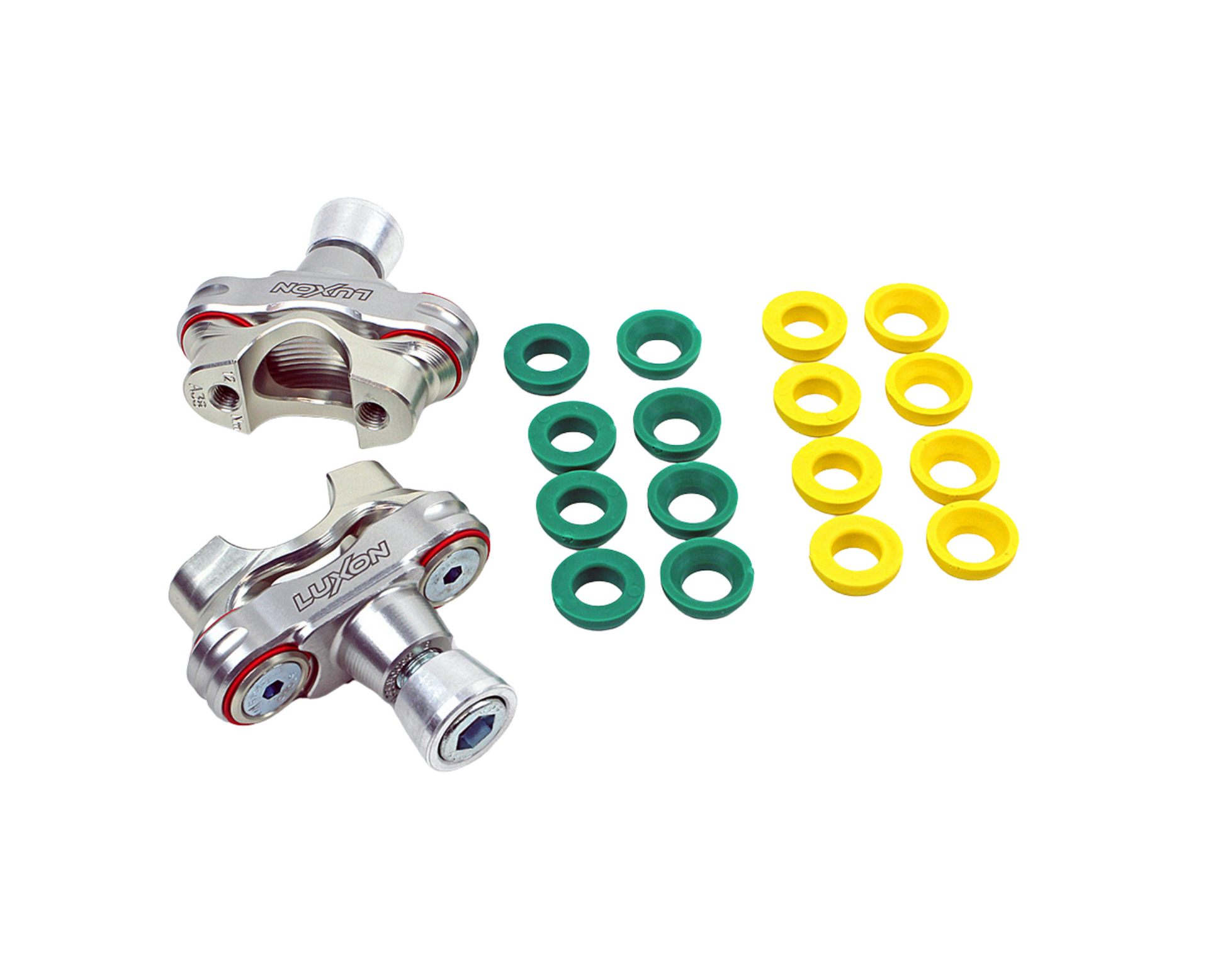

Kit Includes:
- Rubber isolated lower bar mounts
- Rubber bushings
- Necessary hardware
- Instruction manual.
Three different hardness levels of rubber bushings are included at no additional cost. Soft (green) is for lighter riders, vet riders, or those with wrist injuries. Medium (yellow) is recommended for most off-road and motocross use, and hard (red) is recommended for aggressive motocross use and faster riders. It is also possible to mix different hardness levels of top and bottom bushings (for example, medium uppers with hard lowers) for further tuning.
Bushings will "break in" on the first ride and become a little softer than when first installed. Like all rubber bushings, these are wear items and will eventually break down and need replacing. Softer bushings will need to be replaced more often than harder bushings. Replacement bushings are available here.

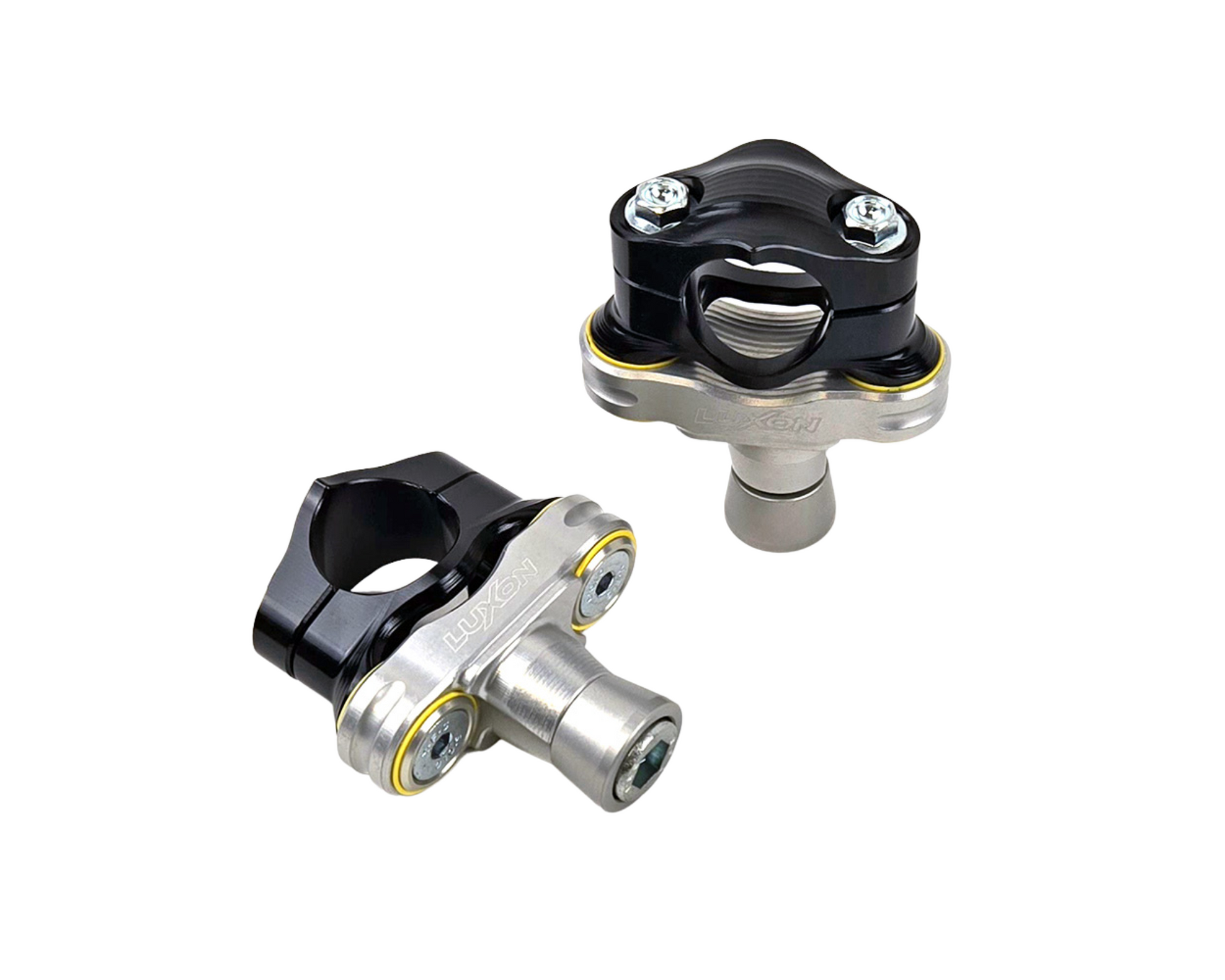

Luxon 1 1/8" bar mounts fit standard 1 1/8" (28.6 mm) handlebars (sometimes called fatbars) and Luxon 36mm mounts fit the Renthal FB36 bars (36 mm). These are NOT the same as fatbars, they have a much larger clamping diameter. Luxon do not offer bar mounts to fit the old 7/8" size handlebars. Other aftermarket companies offer adapter bushings to fit the 7/8" bar diameter in standard 1 1/8" mounts if necessary.
SPECIFICATIONS
WEIGHT (excluding top mount and pinch bolts) 321 g, 0.71 lbs
STOCK WEIGHT (excluding top mount and pinch bolts) 235 g, 0.52 lbs
VIEW INSTALLATION INSTRUCTIONS HERE
BIKE FITMENT:
STARK
