LUXON 4-POST RUBBER ISOLATED 1 1/8" BAR MOUNTS YAMAHA YZ125/YZ250 06-25 CONE INTERFACE

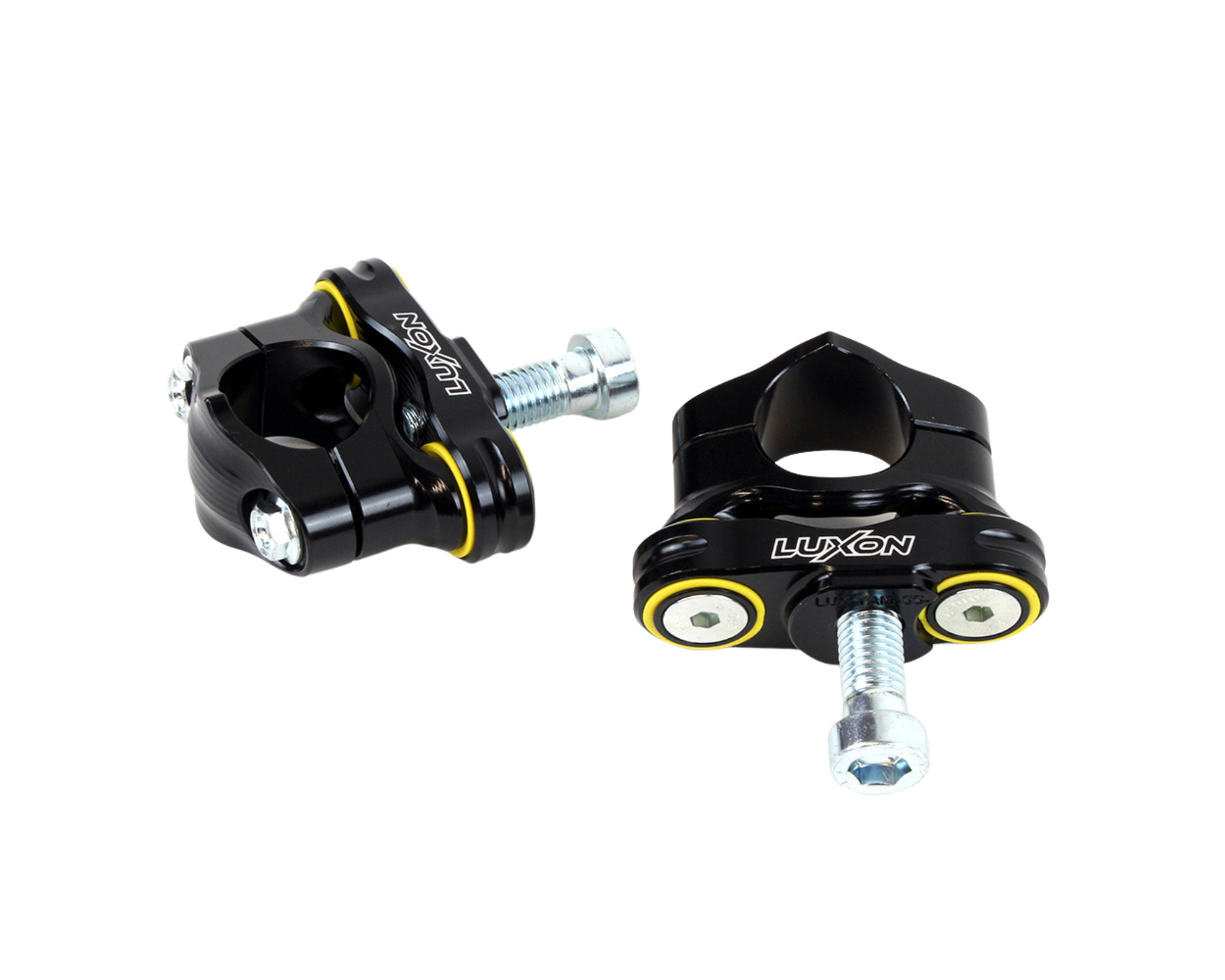

Luxon lightweight 4-post bar mounts eliminate twisting due to small crashes and tip-overs without sacrificing vibration absorption like a solid mount would. Four sets of bushings absorb hard hits and track roughness without compromising steering precision. Three different rubber bushing sets (soft, medium, and firm) are included to fine tune the feel.

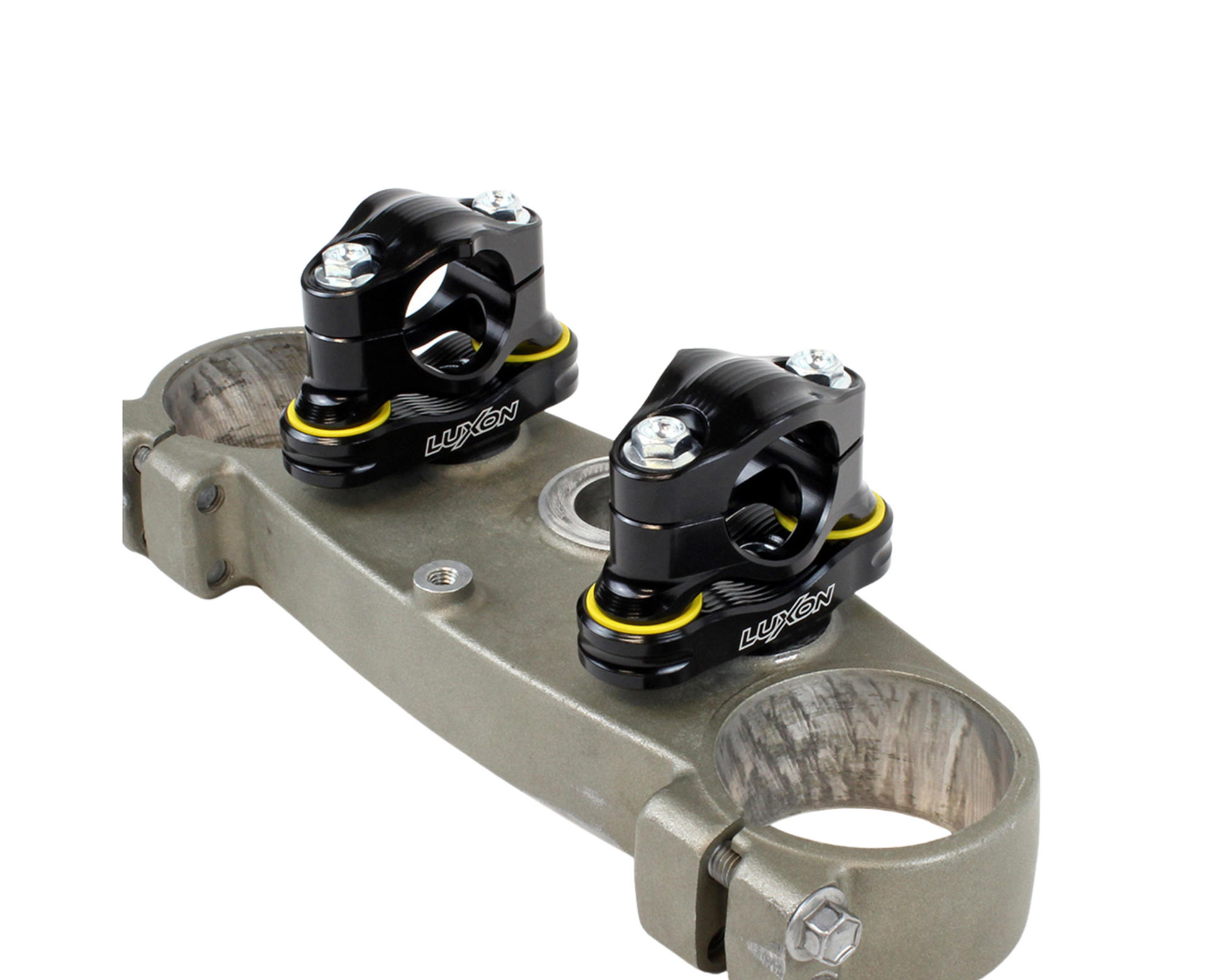

These mounts fit stock Yamaha 2-stroke triple clamps and many other clamps with a simple 12 mm unthreaded hole (not ones with rubber cones). The mounts are the stock offset (10 mm of bar position change when flipping the mounts around). Height is increased by only 2.5 mm (25.5 mm high, bottom of bar to top of triple clamp).

Kit Includes:

• Rubber isolated lower bar mounts
• Rubber bushings
• Upper bar clamps

• High-strength steel clamp bolts
• Anti-seize
• Instruction manual.

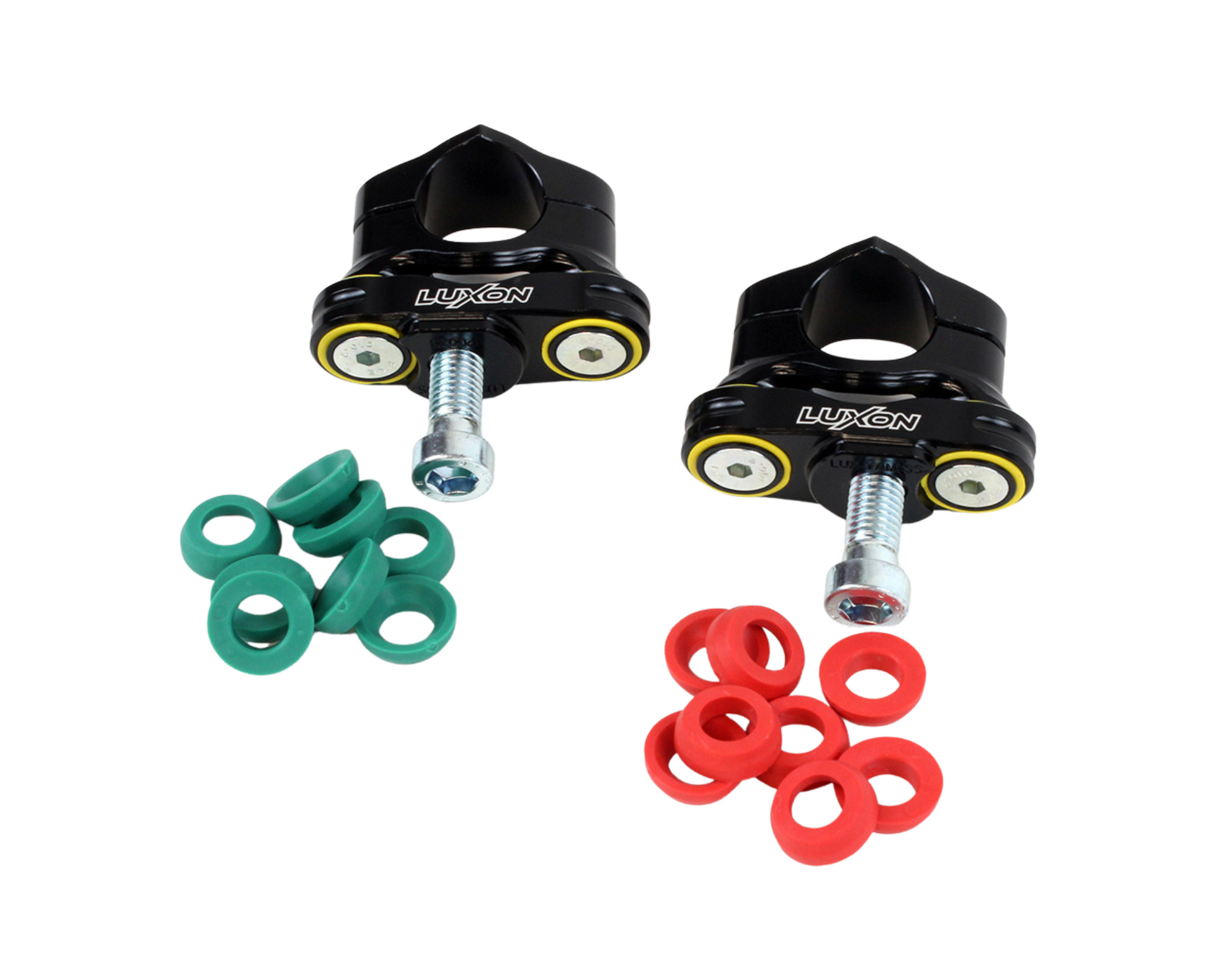

Three different hardness levels of rubber bushings are included at no additional cost. Soft (green) is for lighter riders, vet riders, or those with wrist injuries. Medium (yellow) is recommended for most off-road and motocross use, and hard (red) is recommended for aggressive motocross use and faster riders. It is also possible to mix different hardness levels of top and bottom bushings (for example, medium uppers with hard lowers) for further tuning.

Bushings will "break in" on the first ride and become a little softer than when first installed. Like all rubber bushings, these are wear items and will eventually break down and need replacing. Softer bushings will need to be replaced more often than harder bushings. Replacement bushings are available here.

Depending on the installation type, make and model of bike, bar mount position, etc., you may need to lightly trim plastic brackets and/or relocate hour meters or accessories to allow clearance for these bar mounts in some mount positions (typically not an issue on motocross bike installations).

BAR SIZE:

Luxon 1 1/8" bar mounts fit standard 1 1/8" (28.6 mm) handlebars (sometimes called fatbars) and Luxon 36mm mounts fit the Renthal FB36 bars (36 mm). These are NOT the same as fatbars, they have a much larger clamping diameter. Luxon do not offer bar mounts to fit the old 7/8" size handlebars. Other aftermarket companies offer adapter bushings to fit the 7/8" bar diameter in standard 1 1/8" mounts if necessary.

If you require 36mm bar mounts - click here.

WEIGHT (1 1/8") 378 g, 0.83 lbs
WEIGHT (36 MM) 410 g, 0.90 lbs
STOCK WEIGHT 410 g, 0.90 lbs

An optional riser kit is available.

Kit Includes:

• 4x 5 mm spacers and longer bolts allowing for +5 mm and +10 mm options for those who prefer a taller bar position.

YAMAHA

• YZ125 2006-2025
• YZ125X 2020-2025
• YZ250 2006-2025
• YZ250X 2016-2025

These mounts fit stock Yamaha triple clamps with the M12 thru-hole interface, which includes most all modern Yamaha 2-stroke motocross and off-road models. These mounts do NOT fit the modern four-stroke models with rubber cones. Luxon have four stroke cone mounts available here.

The Yamaha Two-Stroke interface is a simple 12 mm thru hole in the top clamp with a thickness of 25 mm.

VIEW INSTALLATION INSTRUCTIONS HERE
