LUXON 4-POST RUBBER ISOLATED 36MM BAR MOUNTS HONDA CRF250R/CRF450R 02-25 CR125R/CR250R 00-07 CONE INTERFACE

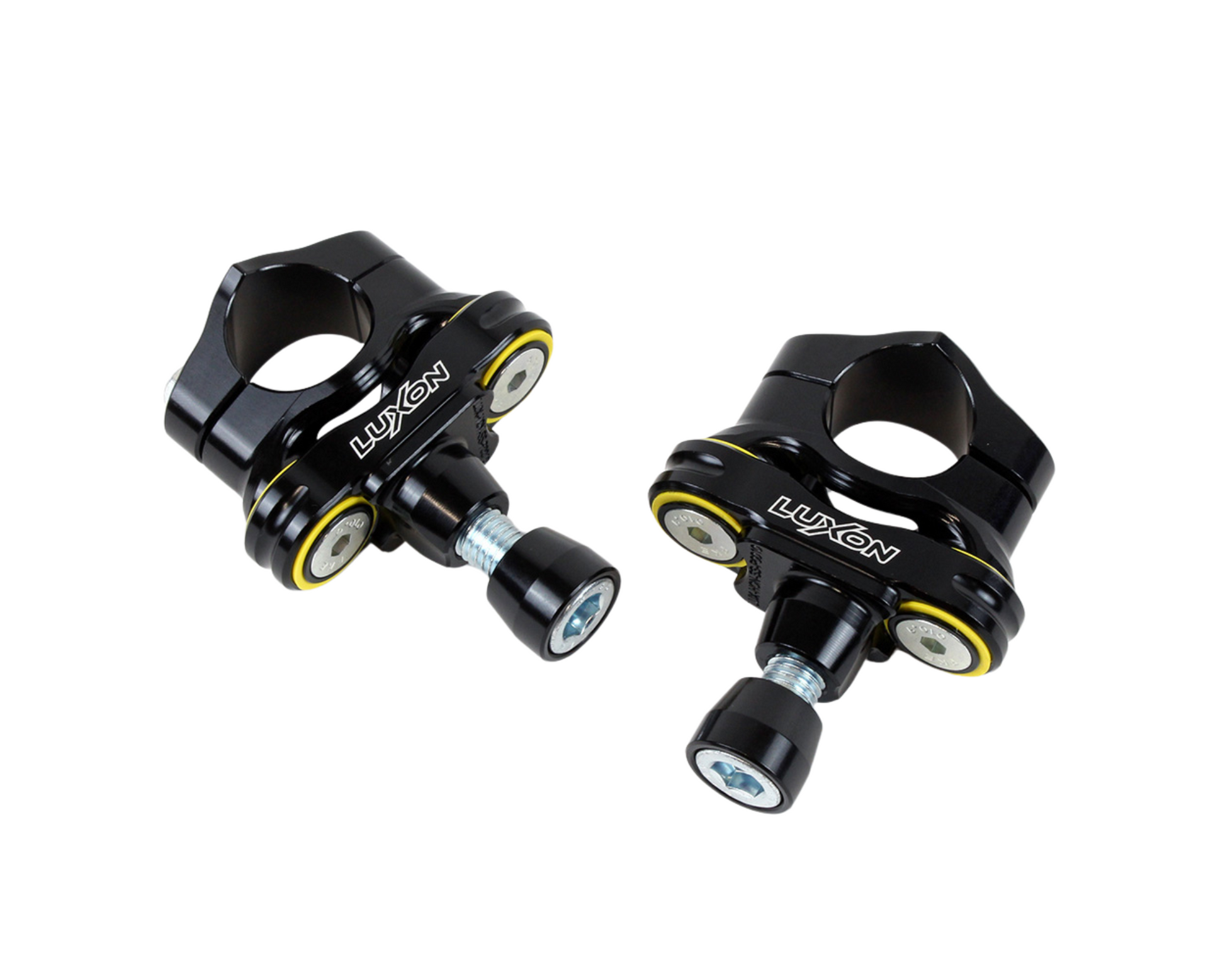

Luxon lightweight 4-post bar mounts eliminate twisting due to small crashes and tip-overs without sacrificing vibration absorption like a solid mount would. Four sets of bushings absorb hard hits and track roughness without compromising steering precision. Three different rubber bushing sets (soft, medium, and firm) are included to fine tune the feel.

These mounts fit stock triple clamps with the Honda rubber cone interface, which includes most all Honda motocross and off-road models. The mounts will work in both the forward and back triple clamp mount hole locations and are the stock offset (10mm of bar position change when flipping the mounts around). Height is the same as stock (26mm high, bottom of bar to top of triple clamp).

Kit Includes:

• Rubber isolated lower bar mounts
• Rubber bushings
• Upper bar clamps

• High-strength steel clamp bolts
• Anti-seize
• Instruction manual.

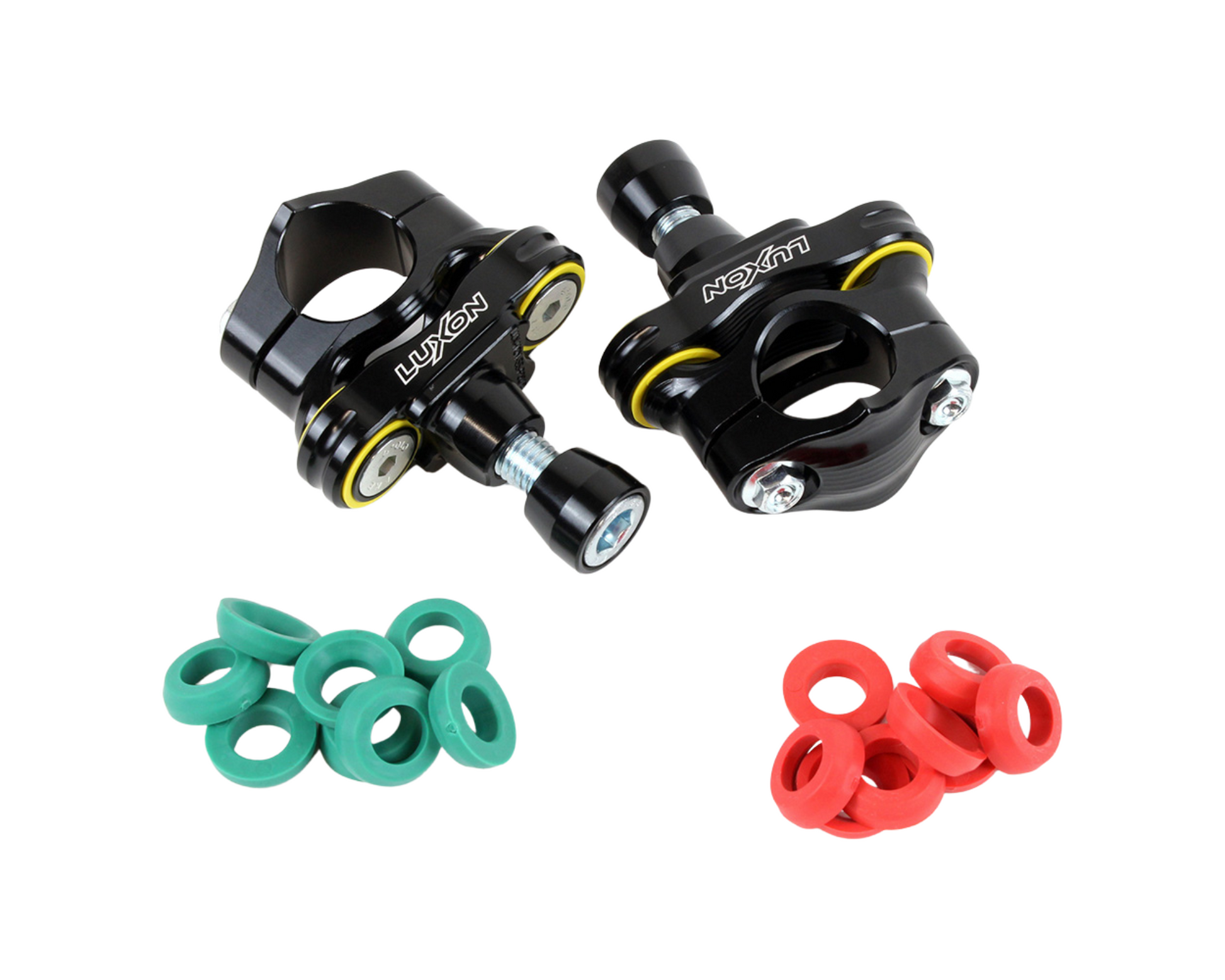

Three different hardness levels of rubber bushings are included at no additional cost. Soft (green) is for lighter riders, vet riders, or those with wrist injuries. Medium (yellow) is recommended for most off-road and motocross use, and hard (red) is recommended for aggressive motocross use and faster riders. It is also possible to mix different hardness levels of top and bottom bushings (for example, medium uppers with hard lowers) for further tuning.

Bushings will "break in" on the first ride and become a little softer than when first installed. Like all rubber bushings, these are wear items and will eventually break down and need replacing. Softer bushings will need to be replaced more often than harder bushings. Replacement bushings are available here.

Depending on the installation type, make and model of bike, bar mount position, etc., you may need to lightly trim plastic brackets and/or relocate hour meters or accessories to allow clearance for these bar mounts in some mount positions (typically not an issue on motocross bike installations).

BAR SIZE:

Luxon 1 1/8" bar mounts fit standard 1 1/8" (28.6 mm) handlebars (sometimes called fatbars) and Luxon 36mm mounts fit the Renthal FB36 bars (36 mm). These are NOT the same as fatbars, they have a much larger clamping diameter. Luxon do not offer bar mounts to fit the old 7/8" size handlebars. Other aftermarket companies offer adapter bushings to fit the 7/8" bar diameter in standard 1 1/8" mounts if necessary.

* PLEASE NOTE THESE BAR MOUNTS ARE FOR RENTHAL FB36 (36MM BARS) NOT REGULAR FATBAR *

If you require standard 1 1/8" bar mounts - click here.

WEIGHT (1 1/8") 419 g, 0.92 lbs
WEIGHT (36 MM) 451 g, 0.99 lbs
STOCK WEIGHT (2024 model) 450 g, 0.99 lbs

HONDA

• CR125R 2000-2007
• CR250R 2000-2007
• CRF250R 2004-2025
• CRF250RX 2017-2025
• CRF450R 2002-2025
• CRF450RX 2017-2025

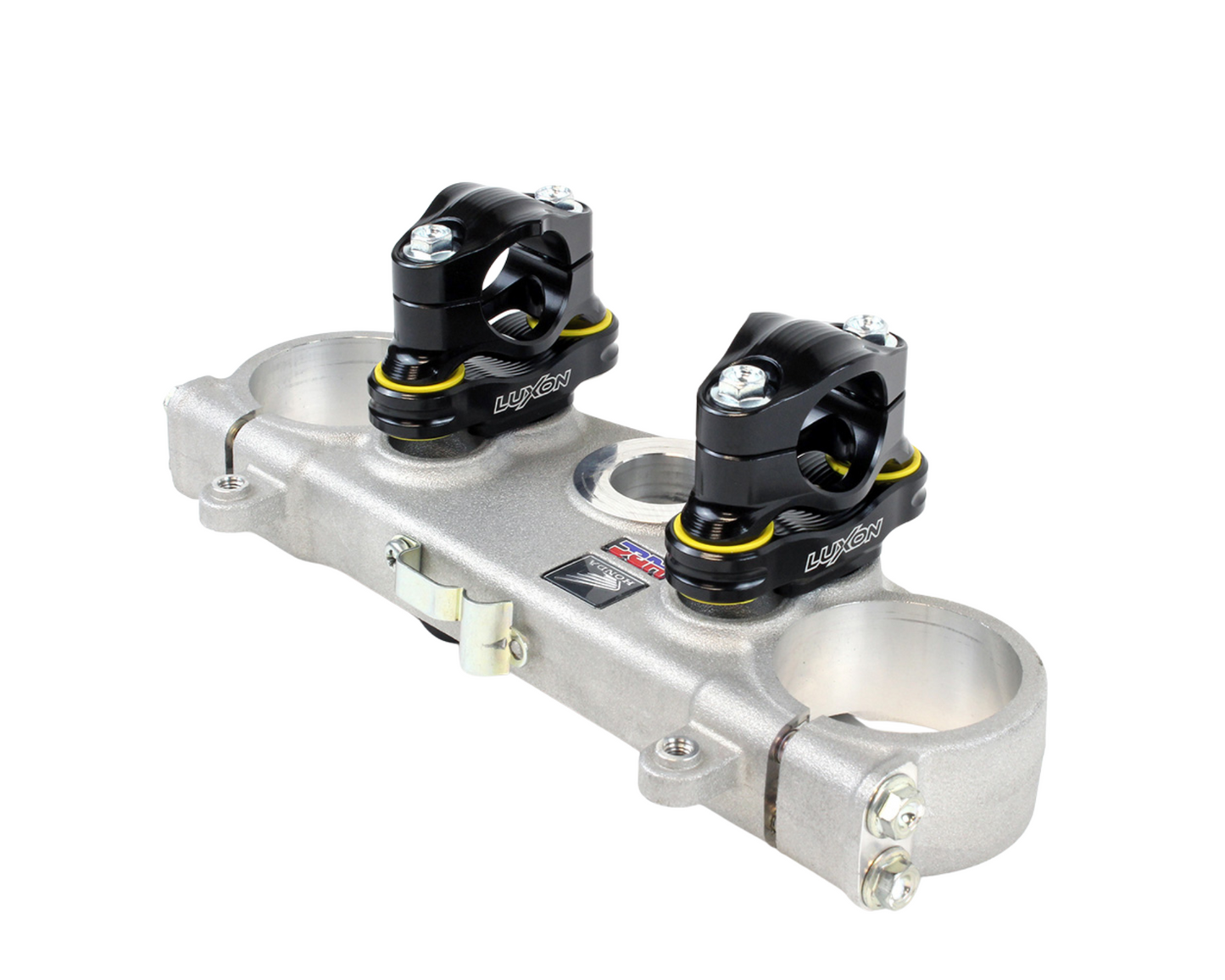

These mounts fit stock Honda triple clamps with the rubber cone interface, which includes many Honda motocross and off-road models. The Honda Cone interface is a tapered cone shaped hole on the top and bottom of the triple clamp (a cross section would look like an hour glass). Newer stock triple clamps have two sets of holes for position adjustment; Luxon bar mounts fit both hole positions.

VIEW INSTALLATION INSTRUCTIONS HERE
