LUXON GEN3 SOLID 1 1/8" BAR MOUNTS (FOR GEN3 TRIPLE CLAMPS)

LUXON GEN3 SOLID 1 1/8" BAR MOUNTS (FOR GEN3 TRIPLE CLAMPS)

LUX-GEN-SS-A0010-118

$189.95 AUD
$189.95 AUD
Sale Sold out Pre-order
Shipping calculated at checkout.
BAR CLAMP BOLTS
Purchase options
SPECIAL ORDER
100%
Select a purchase option to pre order this product
Please allow 1 week for shipment. This item will be sent as soon as possible.
This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Solid bar mounts are the ultimate in low weight, high strength, and reliability, plus they offer a more direct feel to the front wheel. This all comes with reduced comfort, bump, and vibration isolation, when compared to Luxon 4-post rubber isolated bar mounts.

These mounts fit Luxon Gen3 and Gen3 Pro triple clamps as well as many Xtrig triple clamps with an M12 interface. These DO NOT fit stock clamps or other aftermarket clamps.

These mounts have a height of 21mm (bottom of bar to top of triple clamp) and a 3.75mm offset (7.5mm of bar position change when flipping the mounts around). An optional spacer kit is available (allows 21mm, 26mm, 31mm, and 36mm heights).

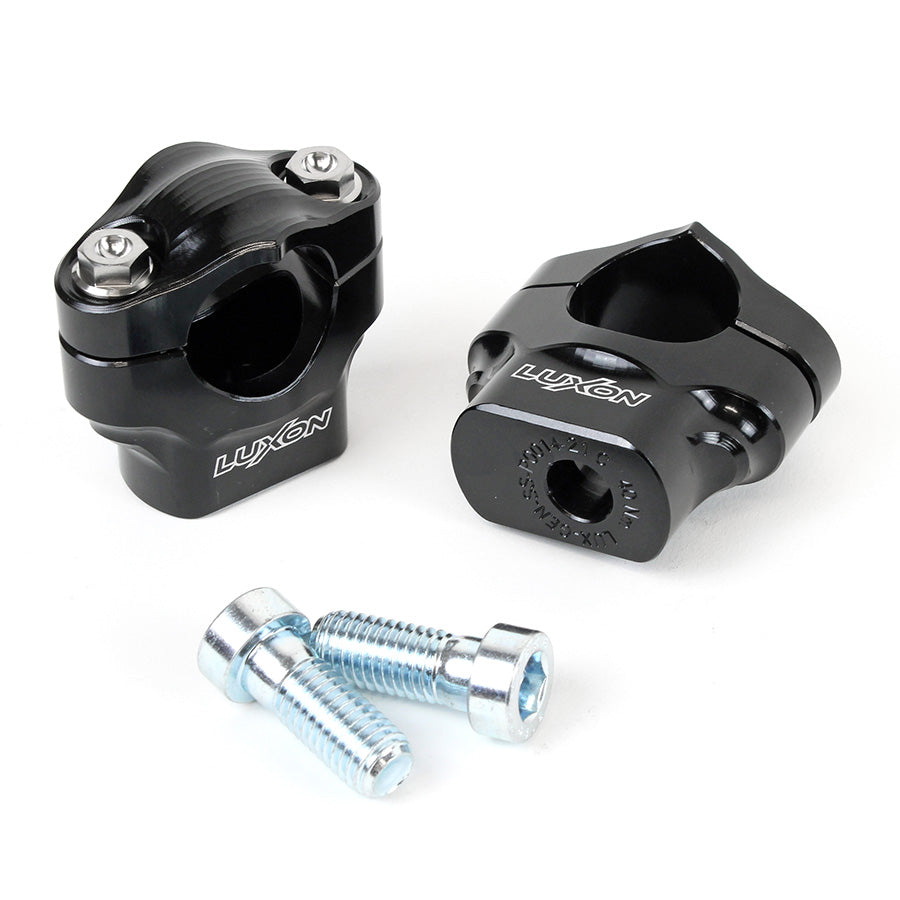

KIT INCLUDES:

  • Lower bar mounts
  • Upper bar clamps
  • High strength steel mounting hardware (Titanium clamp bolts are an optional upgrade)
  • Anti-seize
  • Installation instructions

FITMENT:

These mounts fit Luxon Gen3, Gen3 Pro, and many Xtrig triple clamps. They do NOT fit stock clamps or other aftermarket clamps. Luxon mounts fit most bikes without issue. In some cases, you may need to trim plastic brackets or relocate hour meters or accessories to allow clearance in the extreme mounting positions (for example: front hole, bars away from the rider). Always check for full clearance after installation and before riding.

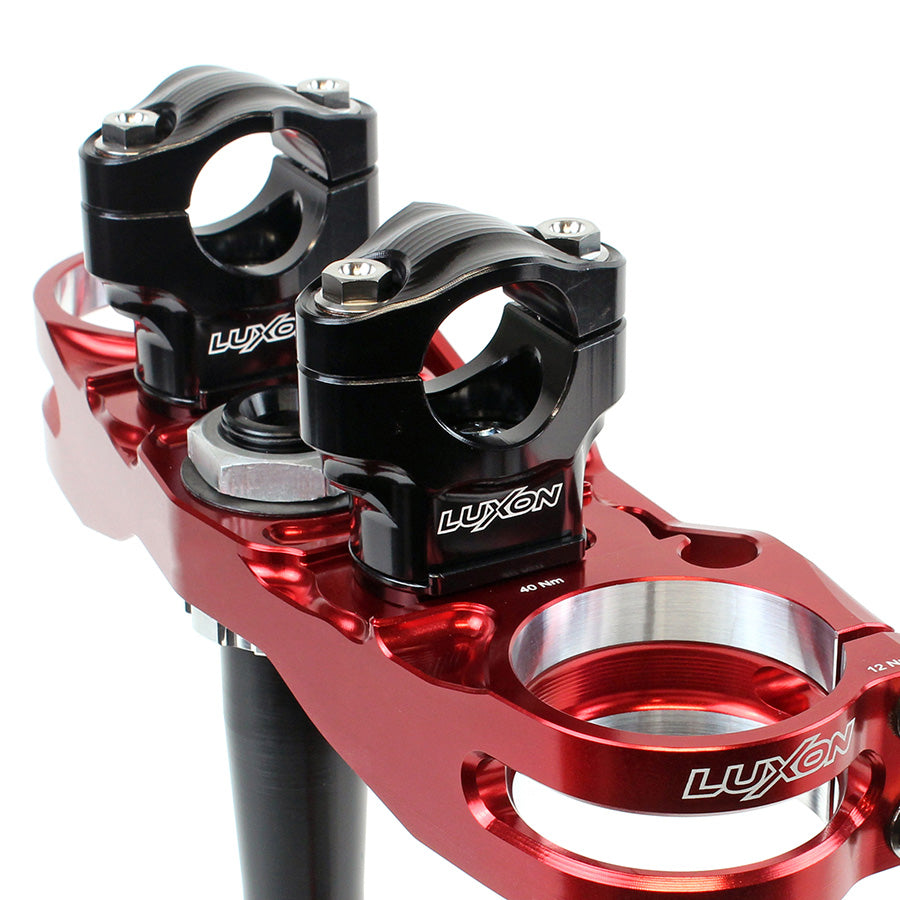

(Image: The M12 interface on a Luxon Gen3 triple clamp)
 The M12 interface is a recessed slot on the top triple clamp, 26mm wide, with three 12mm threaded holes per side. The bar mounts sit in these slots and bolt directly to the triple clamp with an M12 bolt.

BAR SIZE:

Luxon 1 1/8" bar mounts fit standard 1 1/8" (28.6mm) handlebars (sometimes called fatbars). Luxon do not offer bar mounts to fit the old 7/8" size handlebars. Other aftermarket companies offer adapter bushings to fit the 7/8" bar diameter in standard 1 1/8" mounts if necessary.

BAR CLAMP BOLTS - available in two options:

  • High Strength Steel
  • Grade 5 Titanium (optional upgrade)
