VERTEX 14.4:1 COMP RACERS CHOICE PISTON KIT YAMAHA YZ250F 14-15 YZ250FX 15-16 WR250F 15-17

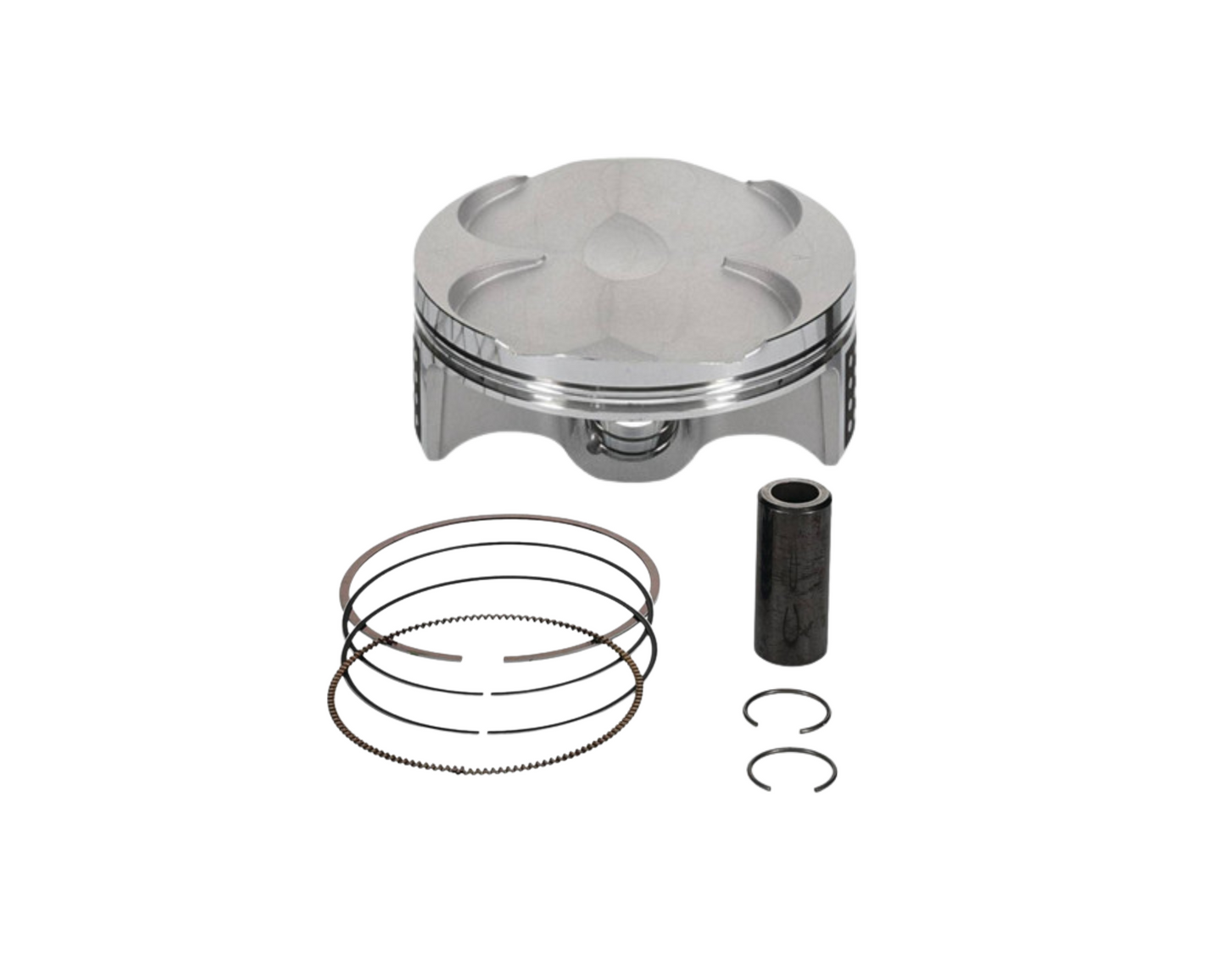

KIT INCLUDES

• Piston
• Piston Pin
• Circlips
• Rings

PISTON SPECIFICATIONS

A PISTON:

• High Compression
• Compression Ratio: 14.4:1
• Cylinder Diameter: 77mm

• Displacement: 250cc

• Piston Diameter: 76.95mm

B PISTON:

• High Compression
• Compression Ratio: 14.4:1
• Cylinder Diameter: 77mm

• Displacement: 250cc

• Piston Diameter: 76.96mm

C PISTON:

• High Compression
• Compression Ratio: 14.4:1
• Cylinder Diameter: 77mm

• Displacement: 250cc

• Piston Diameter: 76.97mm

VERTEX PISTON KIT

Four-stroke engines have much higher cylinder pressures than two-strokes and are generally manufactured from forgings. To handle the internal pressures of a four-stroke engine, Vertex's four-stroke pistons are forged from the highest quality 2618 aluminium alloy for superior strength and durability. Vertex also utilises a T-box forging on their highest compression pistons. This new design builds on Vertex's outstanding dedication to quality by making it more durable and able to handle even the most demanding rigours better than ever before. Vertex also uses proprietary piston profiles and compression ratios offered in A, B, C and D sizes to maximise power and performance while reducing blow-by and oil consumption.

All Vertex Pistons Feature:

• Kits include piston, rings, wrist pin and circlips
• All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
• Replacement rings are sold individually

Note: Please ensure you have measured and selected the correct size piston.

BIKE FITMENT:

YAMAHA

• WR250F 2015-2017
• YZ250F 2014-2015
• YZ250FX 2015-2016
