VORTEX X10 ECU YAMAHA YZ250F 19-20

The ECU is like Vortex's CDI and EFI Interceptor rolled into one module controlling not only Spark timing and Voltage output but also Fuel Mapping and other engine management functions. The result is more power, better power, easier starting and ultimately faster lap times. This unit comes pre-programmed with 10 Performance Fuel & Spark timing maps as well as having 3 additional switches for user trimming of Fuel in Lo, Mid and Hi throttle openings.

The ECU plugs directly into the bikes standard wiring harness and interfaces with all the standard engine sensors such as ECT (Engine Coolant Temperature), IAT (Intake Air Temperature), MAP (Manifold Absolute Pressure), TPS (Throttle Position Sensor), CPS (Crank Position Sensor) to adjust fuel and spark timing for optimum power delivery in all weather, altitude and load conditions.

Performance gains vary depending on Throttle and RPM points however typically gains are in Top End power and Bottom End throttle response is expected from the "Power" settings and a smoother more tractable or rideable power from the "Traction" settings.

Vortex have done extensive work to include tune parameters which improve starting and almost eliminate the flameouts experienced with some EFI MX bikes. All of the development work is done for you! All that is left is for you to do is chose a setting that best suits your riding style or track conditions and ride!

The ECU is also fully programmable (Software not supplied) with parameters that are far more extensive than those found in any factory setting tools, such as Rev Limits, Throttle Enrichment & Decay time, Fuel timing, High Resolution Mapping, Dwell Time, Voltage Output and trim tables for cold starting, air intake temperature (IAT), Engine Coolant Temperature (ECT), Barometric Pressure, Battery voltage, etc... In addition there is real time logging & graphing of many parameters (when combined with the ECU Software - not included).

Note: The ECU does not come standard with a handlebar switch as this is an optional extra. There is no need for a switch eliminator when not running the handlebar switch as with other Vortex CDI products.

VIEW VORTEX HANDLEBAR SWITCH YAMAHA YZ250F 19-20

• Pre Programmed with 10 Performance Fuel & Ignition maps - all the work is done for you!
• Instant Plug in Performance (replaces standard ECU with no mods to wiring required)
• Fuel Trim Switches adjust fuel mapping by +12.5% to -10% in Lo , Mid and Hi throttle bands
• Adjustments require only a screwdriver and integrated switches provide visual feedback.

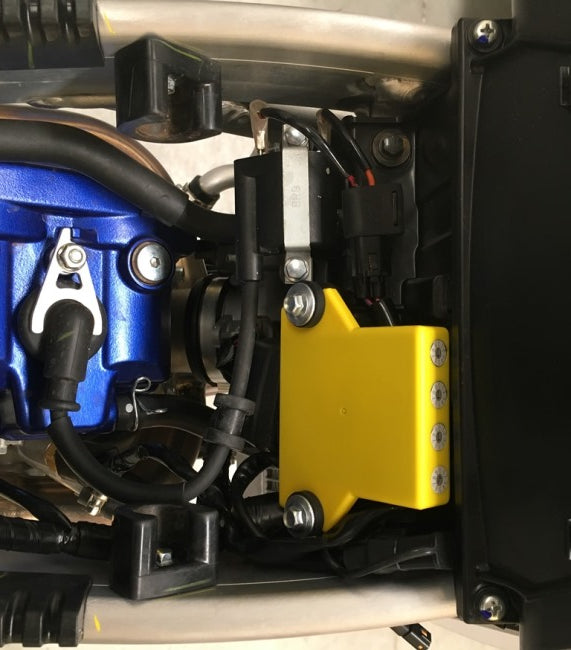

• Simple to install with mounting hardware supplied (where required)
• V-Boost - Programmable Voltage Boost Circuit for maximising Spark Energy across the entire rev range
• Higher / Lower Rev Limit (where required)
• Robust design is fully encapsulated and O-ring sealed
• Diagnostic Flash codes - tests for sensor faults and flashes codes to OEM FI light
• Race Proven reliability
• Re Programmable (Software and Interface hardware not Included)
• 12 month warranty on manufacturing defects

Model Specific Features

• Improved bottom end Power and throttle response
• Improved top end and over rev Power
• Power Ignition & Fuel Mapping for standard and modified engines
• Db assist to help meet Sound Regulations
• Traction - Start and Enduro maps for traction and throttle control

• Better starting and stall prevention
• Higher Rev Limits
• Advances Fuel Injection Timing for improved atomisation and response
• Dual Injector Capable
• Muti Function Port - Map Switch, Dual Injector Driver, Launch Control, Speed Shifter

• Launch Control function accessed via standard map switch

All Vortex CDIs are factory programmed with Performance Fuel and Ignition Maps developed through extensive dyno and track testing by Vortex Ignitions engineers with their network of race teams worldwide.

YAMAHA

• YZ250F 2019-2020
