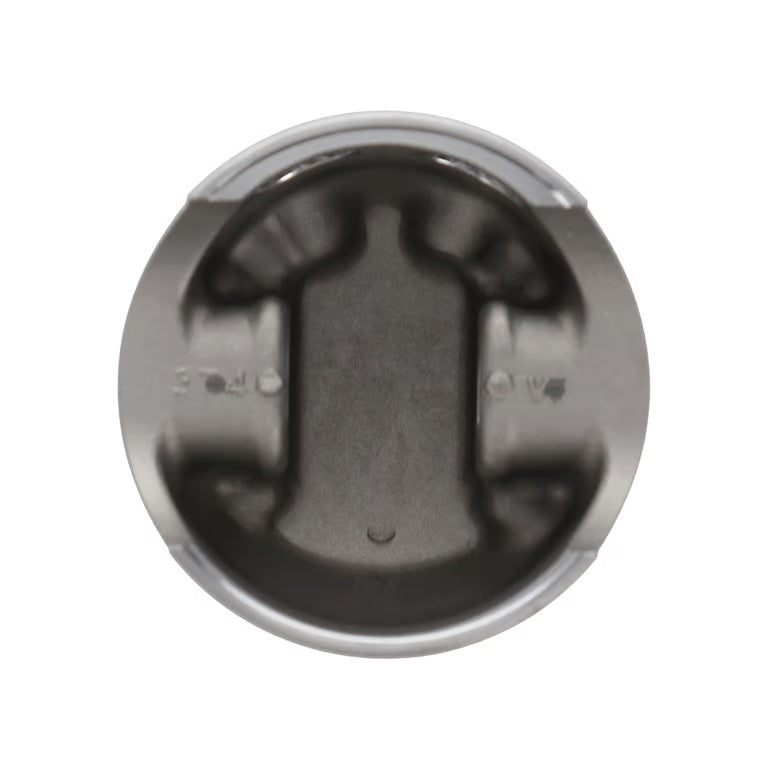

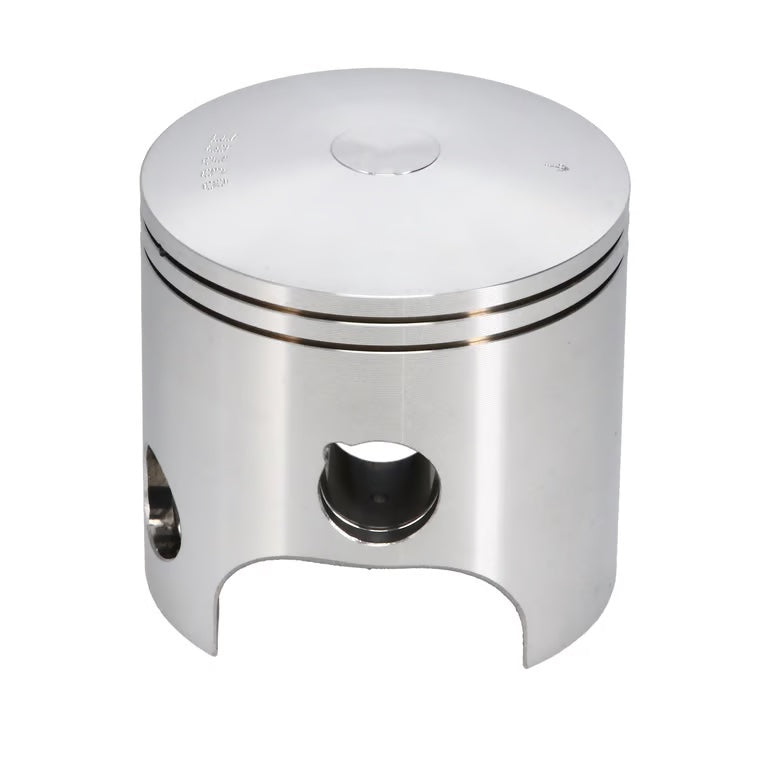

WISECO PISTON KIT YAMAHA DT175 79-81

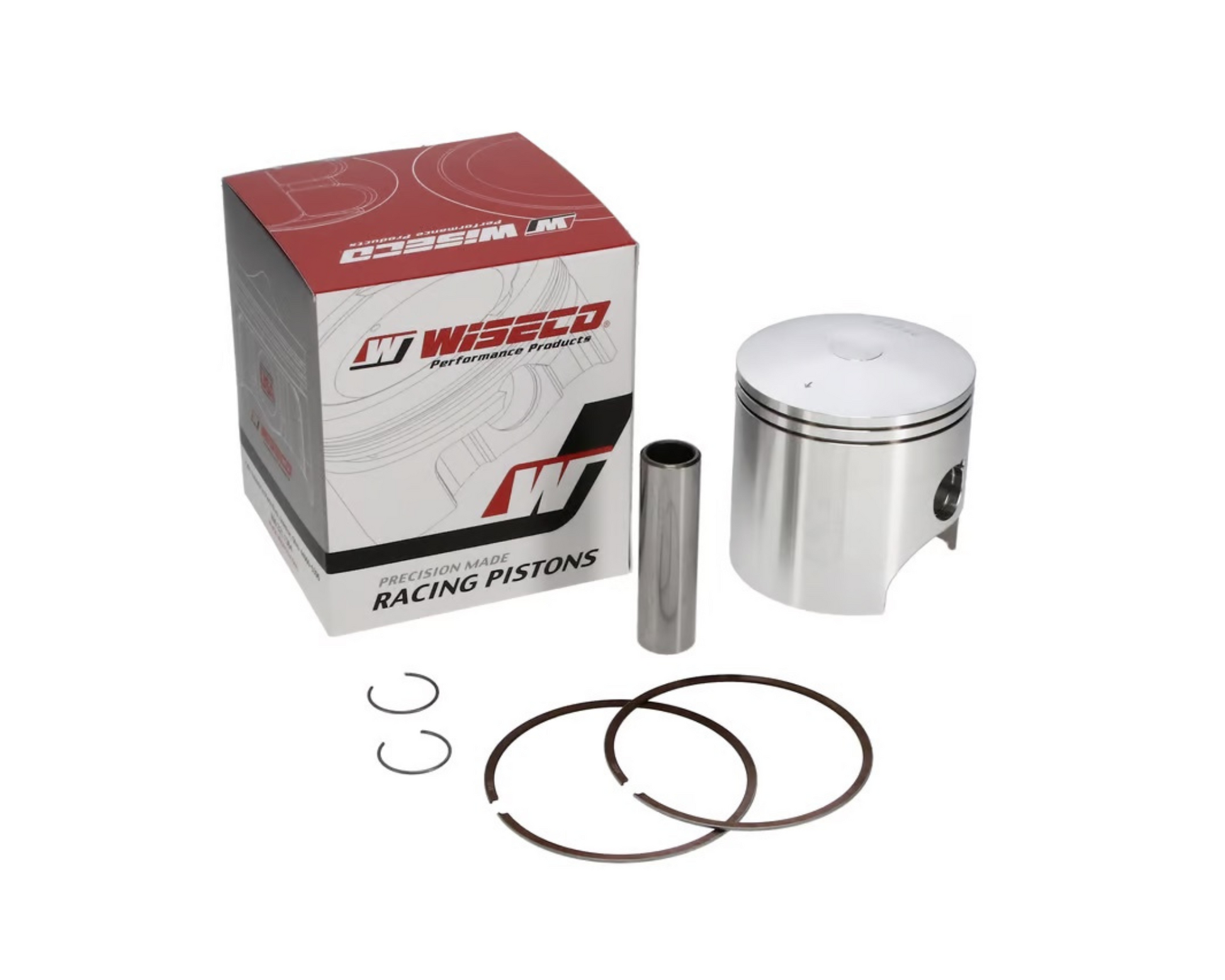

KIT INCLUDES

• Piston
• Piston Pin
• Circlips
• Rings

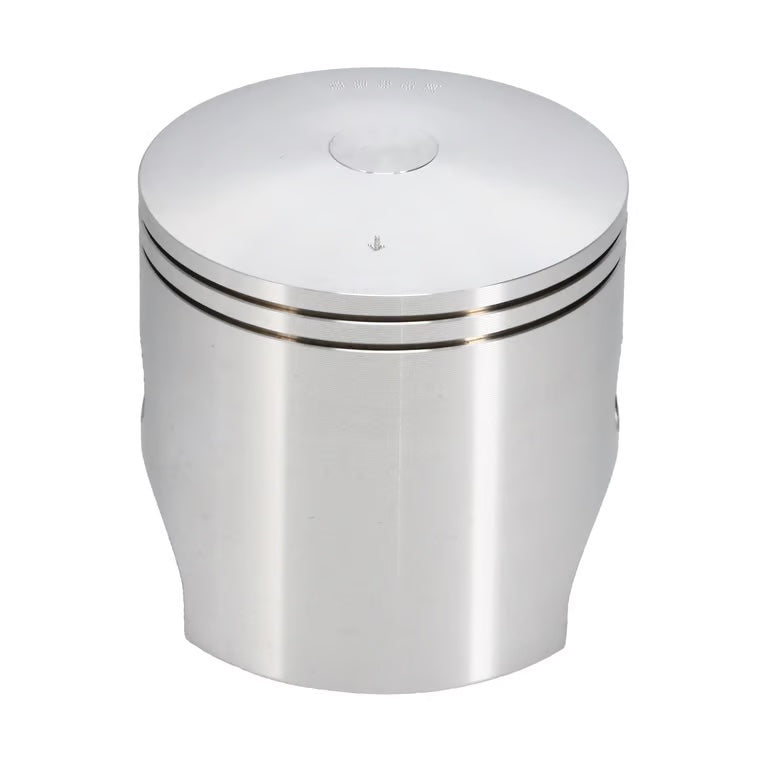

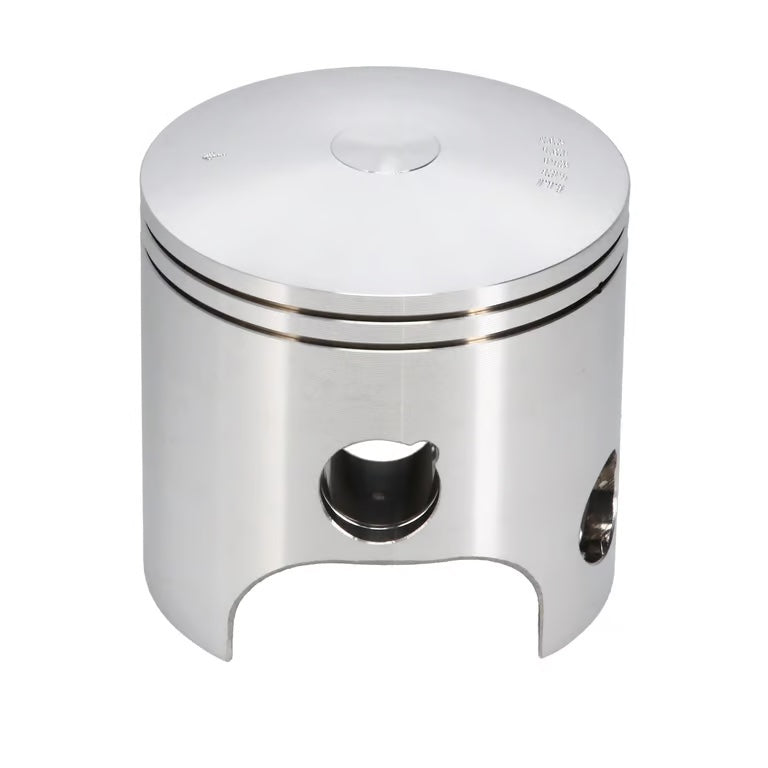

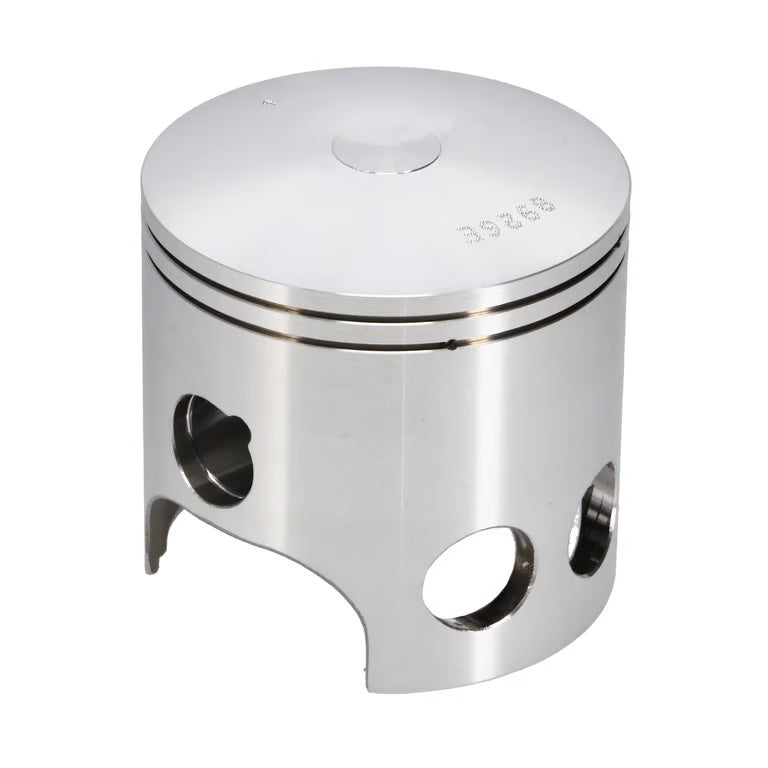

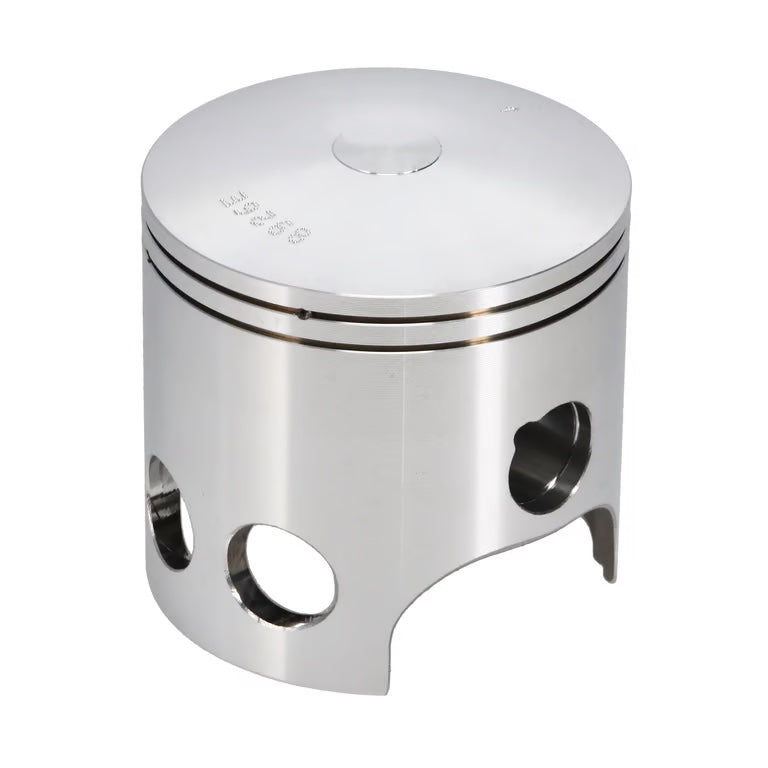

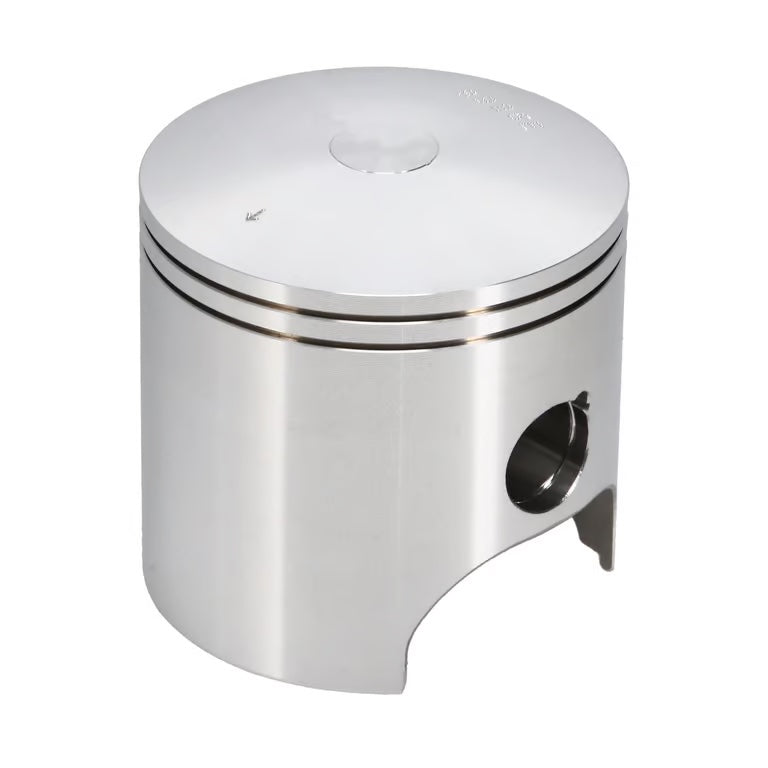

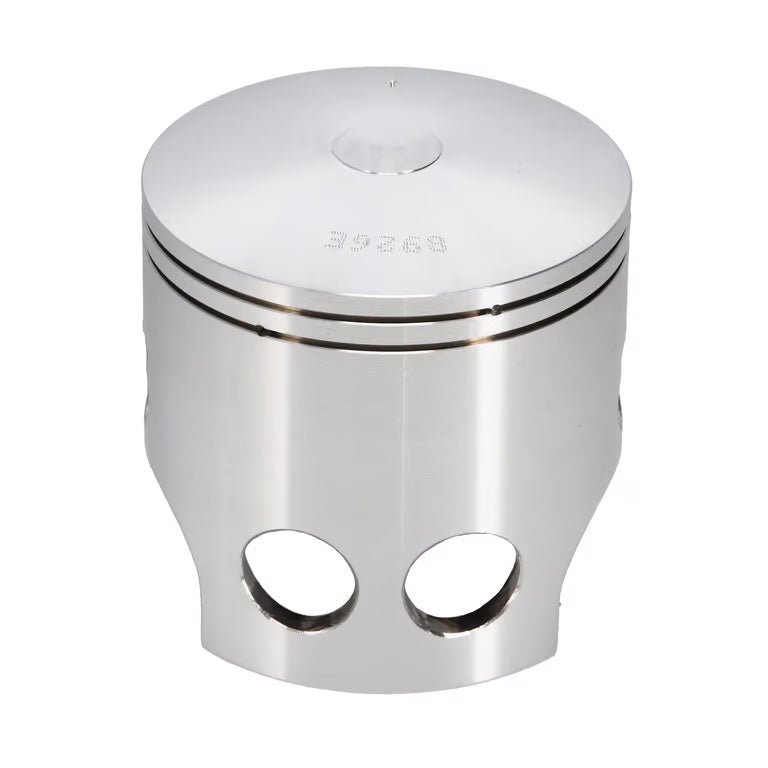

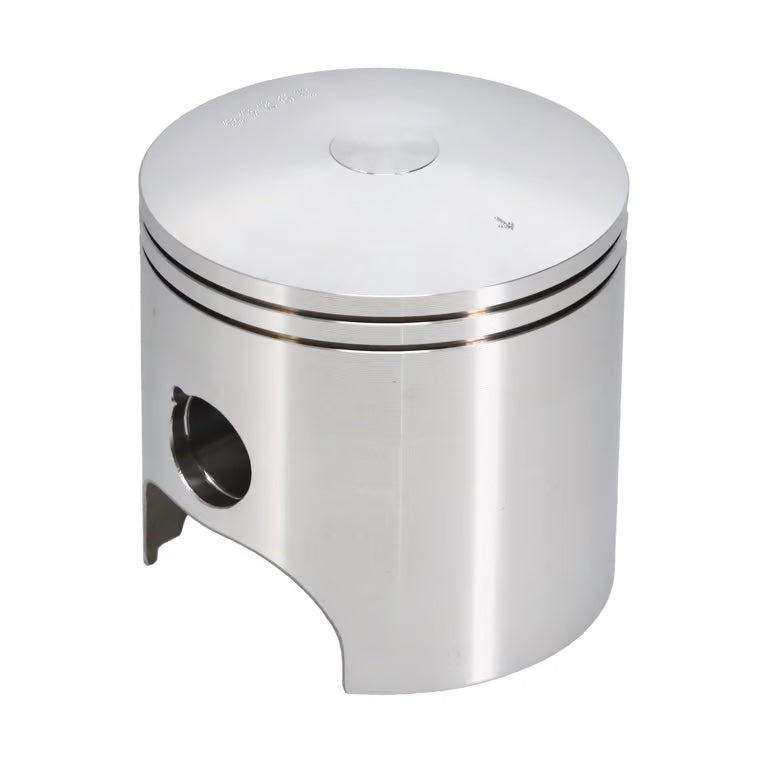

WISECO PISTON KIT

Wiseco leads the performance aftermarket by producing the highest quality forged pistons in the U.S.A. Wiseco is unique because they forge all of their own pistons in-house, and produce all of their own forge tooling in the U.S.A. This allows Wiseco to control all aspects of their manufacturing process from raw bar to skirt coating on the finished parts.

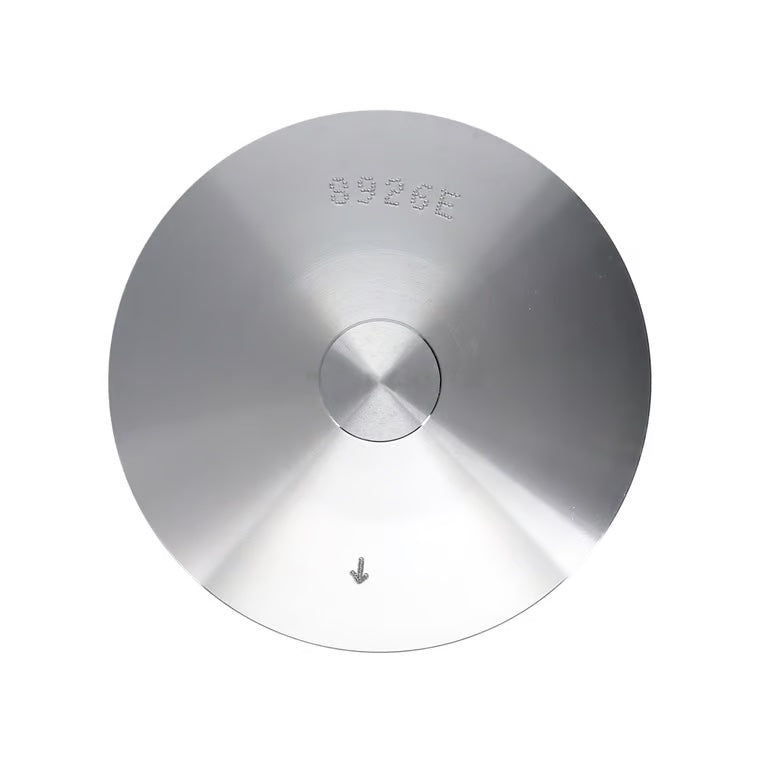

Wiseco Pro-Lite motorcycle pistons are forged using the highest quality materials available resulting in a piston that provides excellent performance and durability. The Wiseco Pro-Lite piston features a race-ready dome finish with smooth edges for improved combustion flow. The rings, wrist pin, and circlips are manufactured by Wiseco under their strict quality standards to make sure every piston kit fits correctly, ensuring top performance is achieved.

Wiseco’s ArmorGlide™ coating eliminates the need to check for different piston sizing and the only thing to confirm before fitment is bore size.

FEATURES

• Much stronger than OEM.
• Dedicated forging
• Race-proven design
• Tight tolerances
• More hours with peak performance between piston changes.
• Kit include Piston, Rings, Wrist Pin and Circlips

PISTON SPECIFICATIONS:

STANDARD PISTON

• Product Series: 2 Stroke Forged Series

• Bore Diameter: 66.00 MM

• Piston Diameter: 65.95 MM

• Piston Material: 4032

• Skirt Coating: No

• Piston Oversize: Standard


0.50MM PISTON

• Oversize: +0.50mm from Standard
• Product Series: 2 Stroke Forged Series

• Bore Diameter: 66.50 MM

• Piston Diameter: 66.45 MM

• Piston Material: 4032

• Skirt Coating: No


1.00MM PISTON

• Oversize: +1.00mm from Standard
• Product Series: 2 Stroke Forged Series

• Bore Diameter: 67.00 MM

• Piston Diameter: 66.95 MM

• Piston Material: 4032

• Skirt Coating: No


1.50MM PISTON

• Oversize: +1.50mm from Standard
• Product Series: 2 Stroke Forged Series

• Bore Diameter: 67.50 MM

• Piston Diameter: 67.45 MM

• Piston Material: 4032

• Skirt Coating: No


2.00MM PISTON

• Oversize: +2.00mm from Standard
• Product Series: 2 Stroke Forged Series

• Bore Diameter: 68.00 MM

• Piston Diameter: 67.95 MM

• Piston Material: 4032

• Skirt Coating: No


Note: Please ensure you have measured and selected the correct size piston.

BIKE FITMENT:

YAMAHA

• DT175 1979-1981
